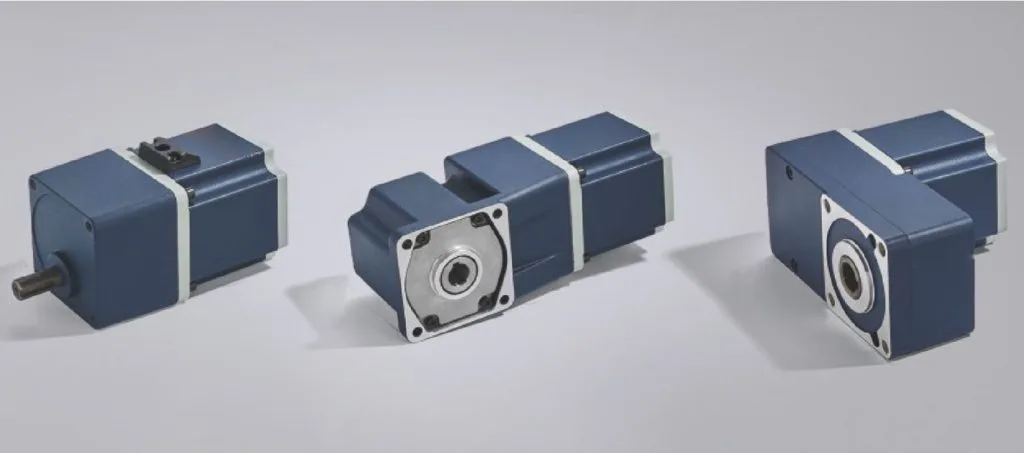

90MM Series DC Brushless Gear Motor

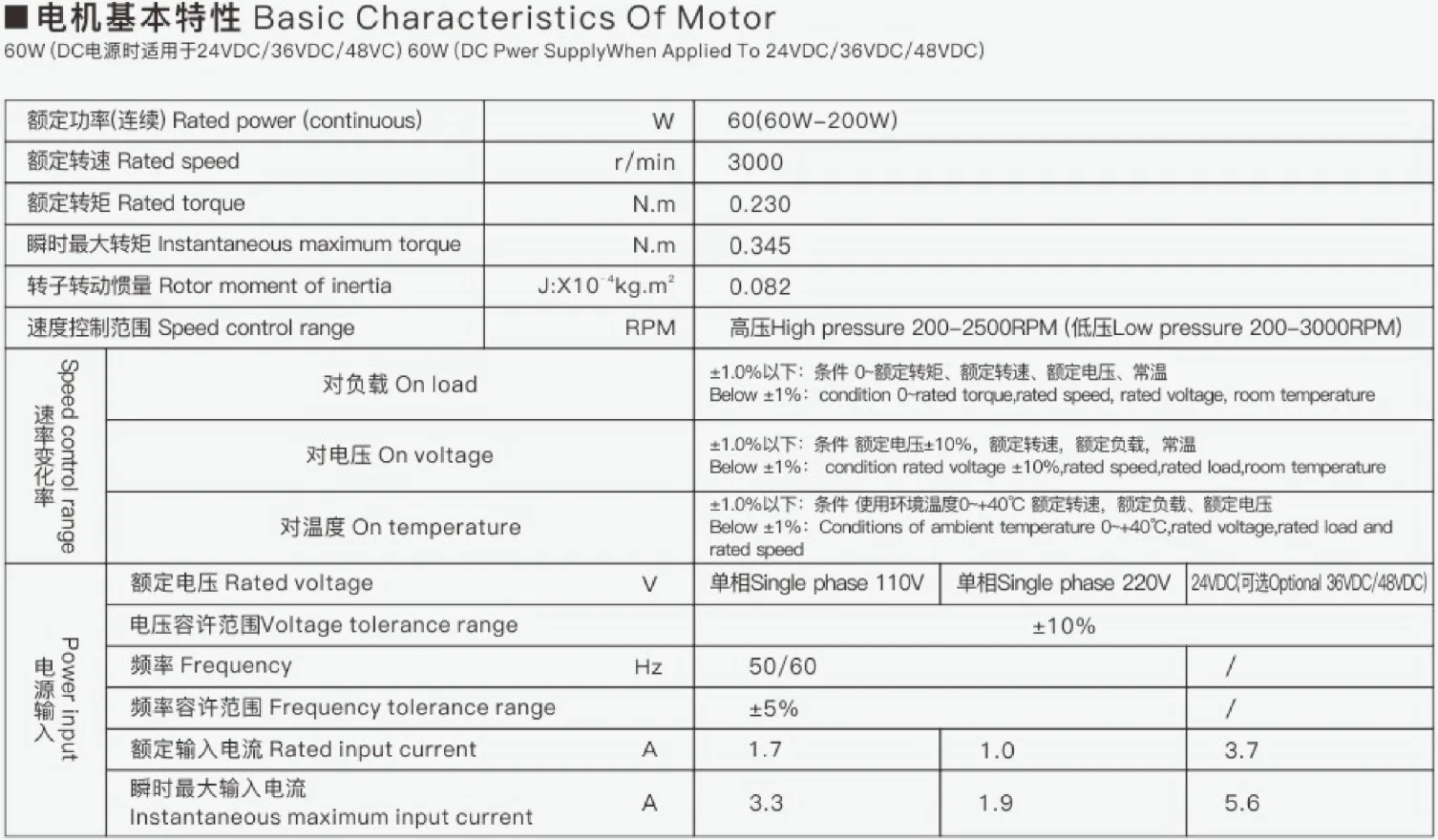

Basic Characteristics of Motor
- Rated power (continuous): 60W-200W
- Rated speed: 3000r/min
- Rated torque: 0.230 N.m
- Rotor moment of inertia: 0.082
- Speed control range: high pressure 200-2500RPM;
- Low voltage 200-3000RPM
DC brushless motor manufacturer
Why choose HM Motor?
HM Motor: Professional Manufacturer of Brushless DC Gear Motors
Established in 2005 and headquartered in Shenzhen, Guangdong Province, China, HM Motor is a professional manufacturer specializing in brushless DC gear motors. Guided by the philosophy of “technology-driven innovation,” the company is committed to developing high-efficiency, low-noise, and reliable DC motors.
With years of experience in the research, development, and manufacturing of brushless motors, HM Motor has built a comprehensive production system and rigorous quality control process. Our flagship 90-series brushless DC gear motors are widely used across various sectors, including smart home systems, intelligent devices, industrial automation, and medical equipment.
HM Motor focuses on continuous innovation in brushless motor technology. Backed by a skilled R&D team and advanced manufacturing equipment, we are dedicated to delivering high-quality, high-performance brushless DC gear motors that meet the evolving needs of our clients.
Our key strengths include:
Technical Expertise: With years of industry experience and a professional R&D team, HM Motor is capable of developing advanced products tailored to market demands.
Product Quality: We maintain a complete production workflow and strict quality control to ensure stable and reliable product performance.
Comprehensive Services: From motor selection and customization to maintenance and technical support, we provide end-to-end solutions to meet diverse customer requirements.
Characteristics Details
Applications of 90MM Series DC Brushless Gear Motor
Versatile Applications of the 90-Series Brushless DC Gear Motor
The 90-series brushless DC gear motor is a new-generation motor known for its high efficiency and stable performance. With advantages in size, weight, output torque, and control precision, it is widely adopted across a range of industries. Key application areas include:
- Robotics and Automation Equipment
Ideal for industrial robots, smart home systems, intelligent logistics devices, and more. - Medical Devices
Suitable for use in electric surgical tools, power wheelchairs, medical robots, etc. - Vending Machines
Commonly applied in automated vending systems, such as beverage dispensers. - Power Tools and Cleaning Equipment
Used in electric tools, vacuum cleaners, and other cleaning machinery. - Electric Toys
Integrated into electric toy cars, ride-on vehicles for children, and similar products.
In addition to the applications above, the 90-series brushless DC gear motor can be customized to meet specific customer requirements, making it a highly adaptable solution for various industries.
Key Advantages and Features of the 90-Series Brushless DC Gear Motor
- High Efficiency
The brushless DC gear motor eliminates friction and electromagnetic interference caused by traditional brushes. This significantly reduces rotor wear and improves overall operating efficiency, resulting in better energy utilization. - Long Service Life
Thanks to the brushless design and high-quality manufacturing, the motor experiences minimal friction and wear. This extends its lifespan and enhances reliability during long-term operation. - Strong Stability
Without sliding friction during operation, the motor maintains a stable speed and smooth motion. It minimizes vibrations caused by sudden starts or stops, improving the overall stability of the system. - Low Noise
Compared to traditional brushed motors, the brushless design operates more quietly due to the absence of brush contact and mechanical wear. - Multiple Specifications Available
The 90-series offers various models and configurations to meet different application needs. Custom combinations can be provided to suit specific equipment requirements. - Compact and Lightweight
Thanks to brushless technology, this motor series features a more compact design with smaller dimensions and reduced weight, while delivering higher torque—making it ideal for space-saving and portable device designs. - Easy to Control
Brushless DC motors offer higher control precision than traditional motors. They support digital control, allowing for accurate regulation of rotation speed and torque output based on specific requirements.
