90W 90MM Micro Constant Speed Motor
Product Overview
The 90W micro fixed-speed motor is a high-quality, highly reliable motor product. It is manufactured using advanced technology and materials, undergoing rigorous quality control and testing to ensure exceptional performance and dependability. With a power output of 90W, this motor delivers stable and robust performance, meeting the needs of various industrial and household applications.
Our 90W micro fixed-speed motor offers the following features and advantages:
- High Efficiency: This motor incorporates advanced design and optimization to enhance efficiency and reduce energy consumption. It provides consistent power output, offering long-lasting support for equipment and system operations.
- Stability: The motor features excellent stability and precise speed control. Whether under high or low load conditions, it maintains reliable performance and demonstrates strong dynamic response capabilities.
- Long Lifespan: Our 90W micro fixed-speed motor is built with high-quality materials and manufacturing processes, ensuring outstanding durability and a prolonged service life. It can withstand high temperatures, humidity, and harsh environmental conditions while maintaining superior performance.
- Versatile Applications: The 90W micro fixed-speed motor is widely used across various fields, including household appliances, automation equipment, medical devices, and machinery manufacturing. It can power fans, pumps, conveyor belts, and other equipment, providing dependable support.
- Customizability: We offer tailored solutions to meet specific customer requirements. From motor size to power voltage, adjustments can be made to optimize performance and adaptability based on client needs.
Whether you require a motor for industrial environments or household devices, our 90W micro fixed-speed motor is designed to meet your expectations. Feel free to contact us anytime to learn more about our products and customized solutions.

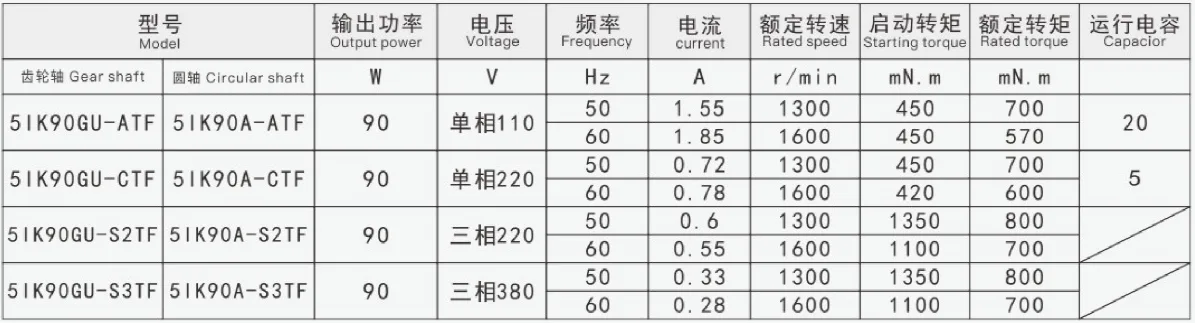

90W Micro Constant Speed Motor Model/Performance
*All safety specifications are cerfified by the model name on the nameplate of the motor
- The speed in the table is calculated by dividing the average speed of the motor by teh deceleration. The actual speed will vary with the load, ranging from 2 to 20%.

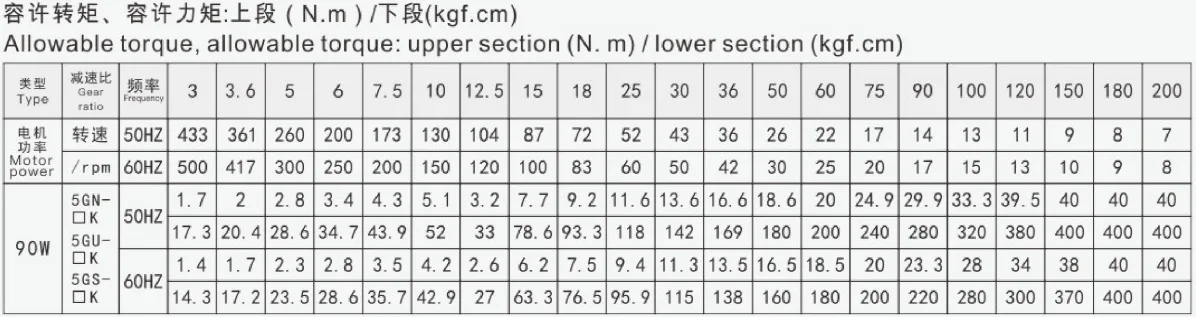

- The torque in the table is calculated by the rated torque x deceleration ratio x transmission efficiency of the motor.
- The maximum allowed torque of the reducer is GN:20N.m\GU:40N.m\GS:40N.m.

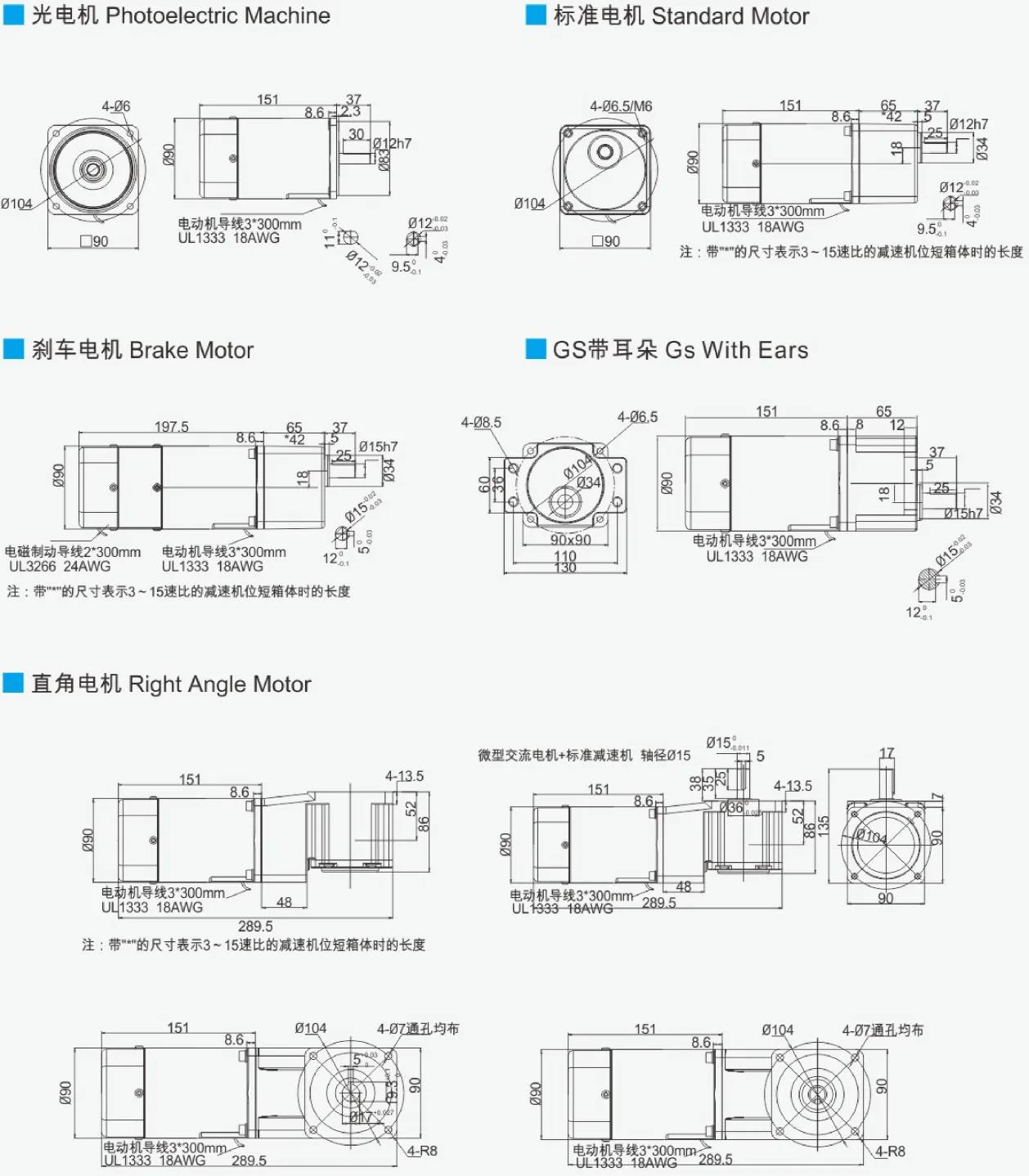

- Micro AC Optical Motor
- Standard Motor
- Brake Motor
- GS with Ears
- Right Angle Motor

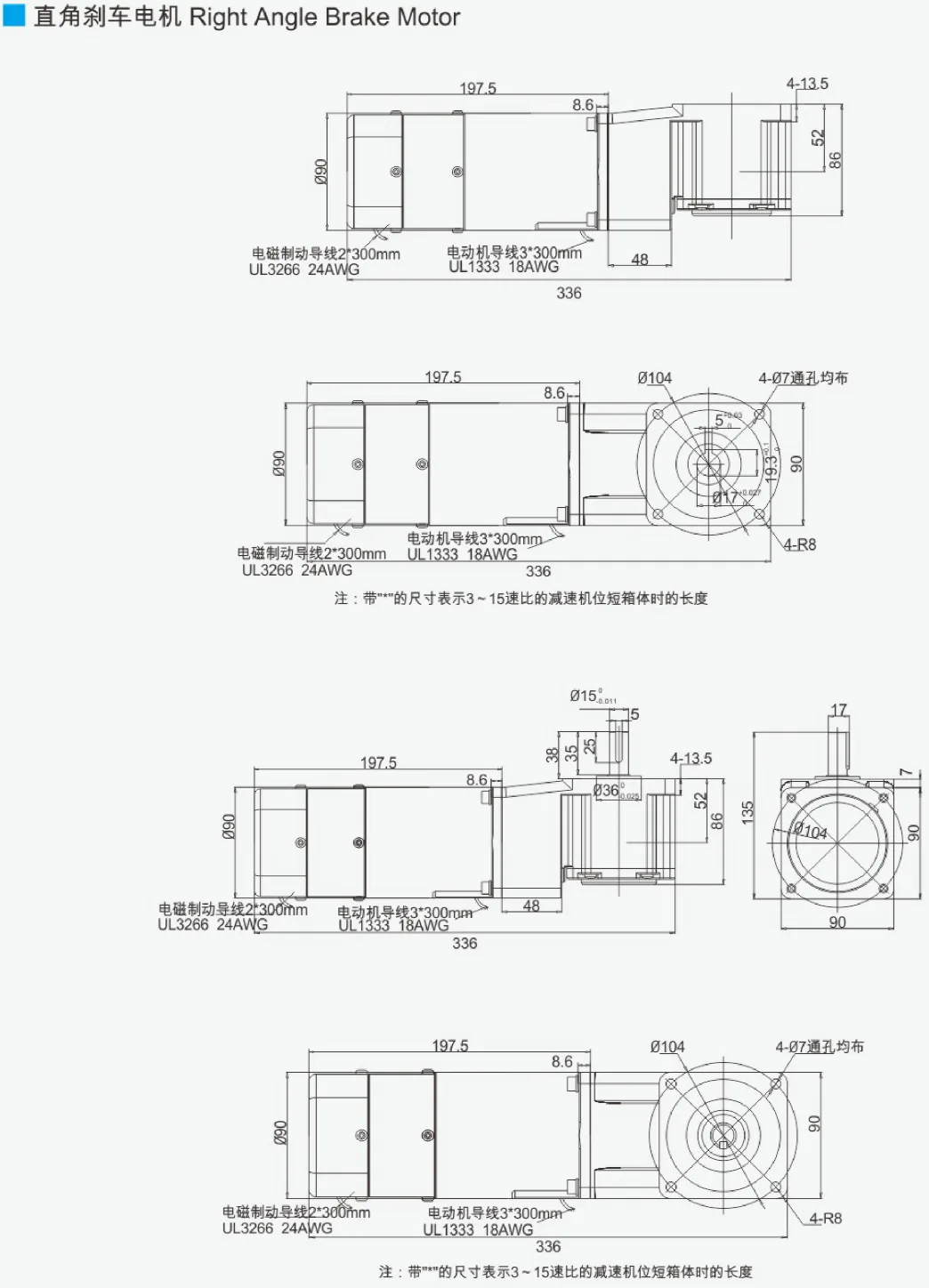

Right Angle Brake Motor

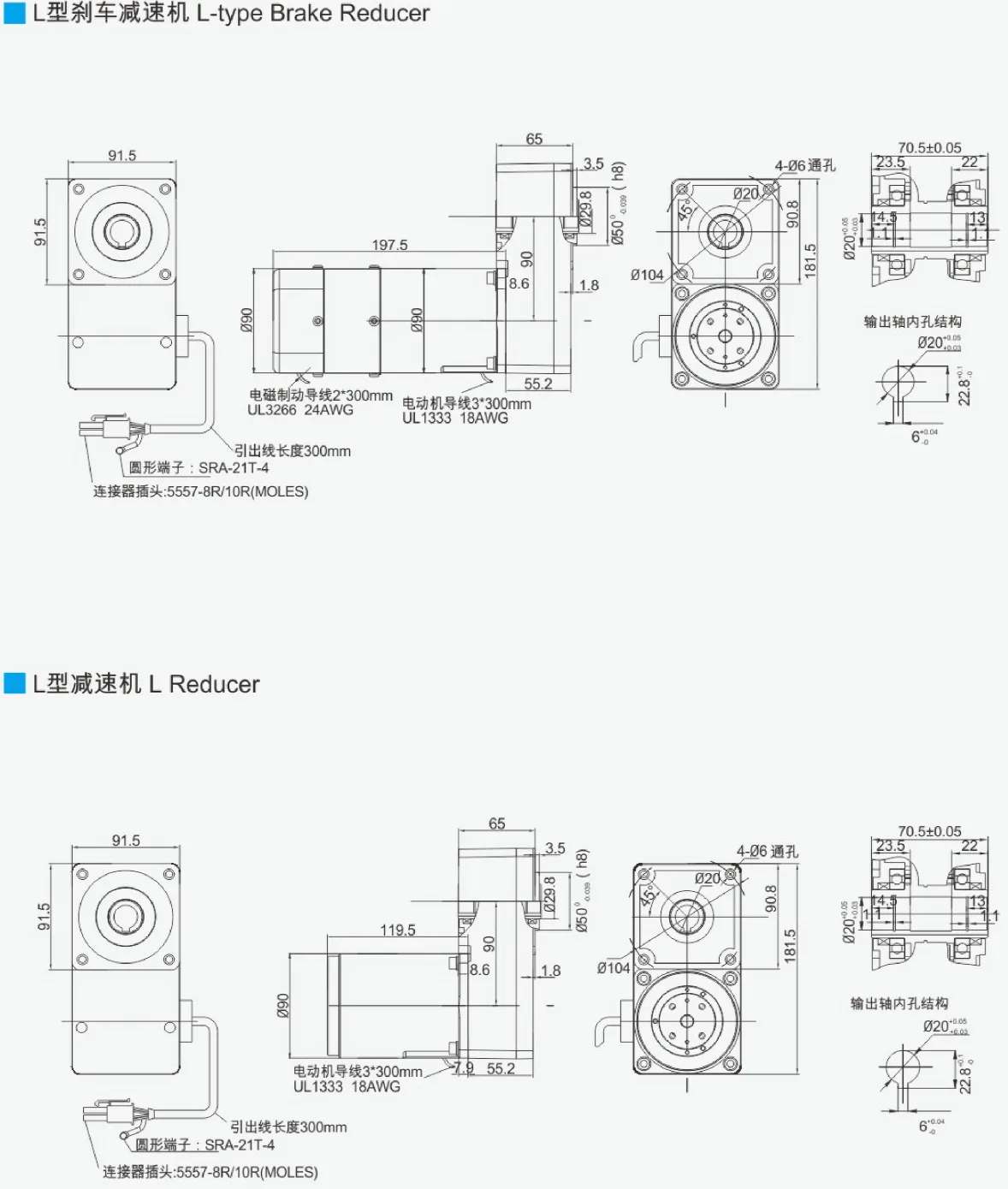

- L-type Brake Reducer
- L Reducer
Small gear reduction motor series
Micro constant speed motor series models
“High Quality, High Standards, Zero Defects”
Our company unites a team of seasoned professionals with over 20 years of expertise in production, technology, and sales. Composed of passionate and driven individuals, we share a common vision. We are dedicated to innovation across technology, manufacturing, management, and processes. With a full range of imported and domestic production and testing equipment, our integrated industrial assembly line ensures quality and efficiency. Supported by a strong sales network and comprehensive after-sales service, we strive to provide exceptional products and support to all our customers.
Reading method for specifications and models of micro constant speed motors
Selection of Junction Box Orientation
We Can Always Do Better
We focus on the details, enforcing strict quality control and robust process oversight to maintain high standards and prevent defects. Our comprehensive quality management system includes dedicated inspectors at every production stage, ensuring compliance with technical specifications. In the final inspection phase, skilled technicians conduct a full evaluation of each product’s appearance and performance, guaranteeing top-quality output before shipment.
Notes
Precautions for Installation and Use of Micro Constant Speed Motors
- General: Do not operate the gearbox or motor beyond the specifications on the nameplate or in the product catalog, as this may cause electric shock, injury, or damage to equipment. Avoid inserting fingers or objects into the gearbox or motor openings to prevent electric shock, injury, fire, or damage. Do not use a damaged gearbox or motor, which could result in injury or fire. Do not remove the nameplate. Unauthorized modifications by customers void the warranty, and our company assumes no liability.
- Handling: Exercise caution when moving the product, as dropping or tipping it poses significant risks.
- Installation: Keep flammable materials away from the gearbox and motor to prevent fire hazards. Ensure no objects block motor ventilation or cooling, as this could lead to burns or fire from overheating. Avoid touching the keyways of the gearbox or motor gears with bare hands to prevent injury. For applications like food machinery prone to oil leaks, attach an oil cup at the installation point to contain leaks and protect the product.
- Connection to Main Machinery: Equip rotating parts with safety covers to avoid injury. Confirm the rotation direction before connecting to other machinery, as incorrect rotation may cause injury or damage.
- Wiring: Do not touch terminals during insulation resistance testing to avoid electric shock.
- Operation: Connect to the power supply as per the wiring diagram or manual to prevent electric shock or fire. (For motors without a junction box, reinforce insulation at connection points.) Avoid Avoid excessive bending, stretching, or clamping of power cables or motor leads to reduce electric shock risks. Securely ground the grounding terminal to prevent electric shock. Use only the power supply specified on the nameplate to avoid motor burnout or fire.
- Daily Inspection and Maintenance: During operation, keep away from rotating parts (e.g., shafts) to avoid injury. In case of entanglement or injury, immediately switch off the power and respond promptly. During power outages, turn off the power switch to prevent injury or damage upon power restoration. Note: Motors with thermal protection will automatically shut off if overheated and restart once cooled, provided no damage has occurred.
- Inspection Upon Receipt: Confirm that the received product matches your order. Using the wrong product may damage the motor or equipment.
Trouble Shooting For Reducer
