Micro AC motor
HM Motor will provide you with a scientific and comprehensive guide for ordering and customizing micro AC motors, quickly helping you complete the selection of micro AC motors and shorten the engineering cycle of motor customization.
Characteristics of Micro AC Motor
- Common voltages for micro AC motors: 110V and 220V
- Advantages of micro AC motors: They can run for extended periods and operate in high-temperature environments.
- Micro AC motors require AC power to operate.
- Structure of micro AC motors: The motor consists of a rotor and a stator. The rotor conductors are shaped like a squirrel cage; silicon steel is used between the conductors. Some AC motors also have windings on the rotor.
- Advantages of micro AC motors: They have a simple structure, easy maintenance, low environmental requirements, and offer significant benefits in terms of energy savings and increased productivity. They are typically used in larger household appliances.
Performance parameters and selection guide for miniature AC motors

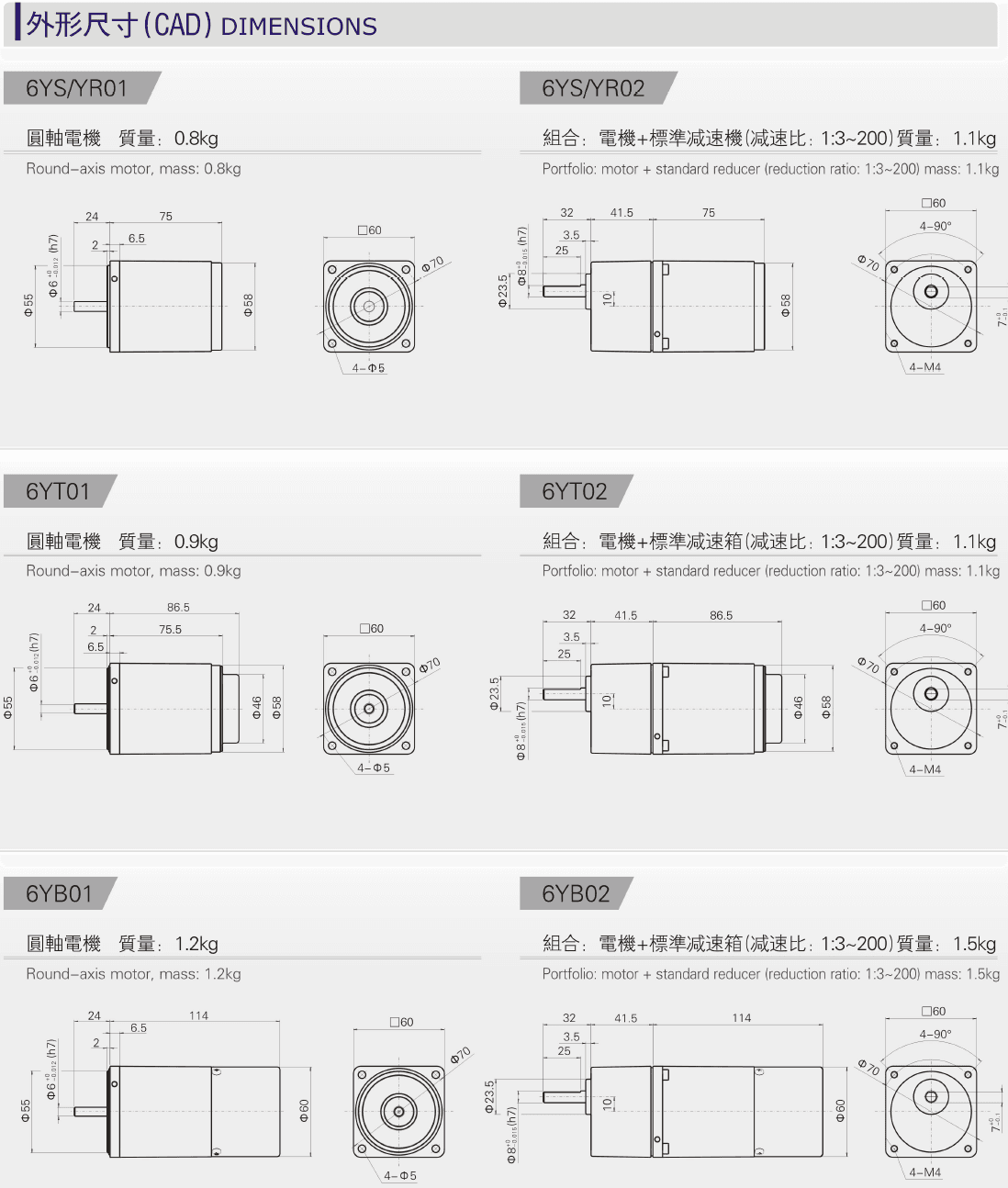

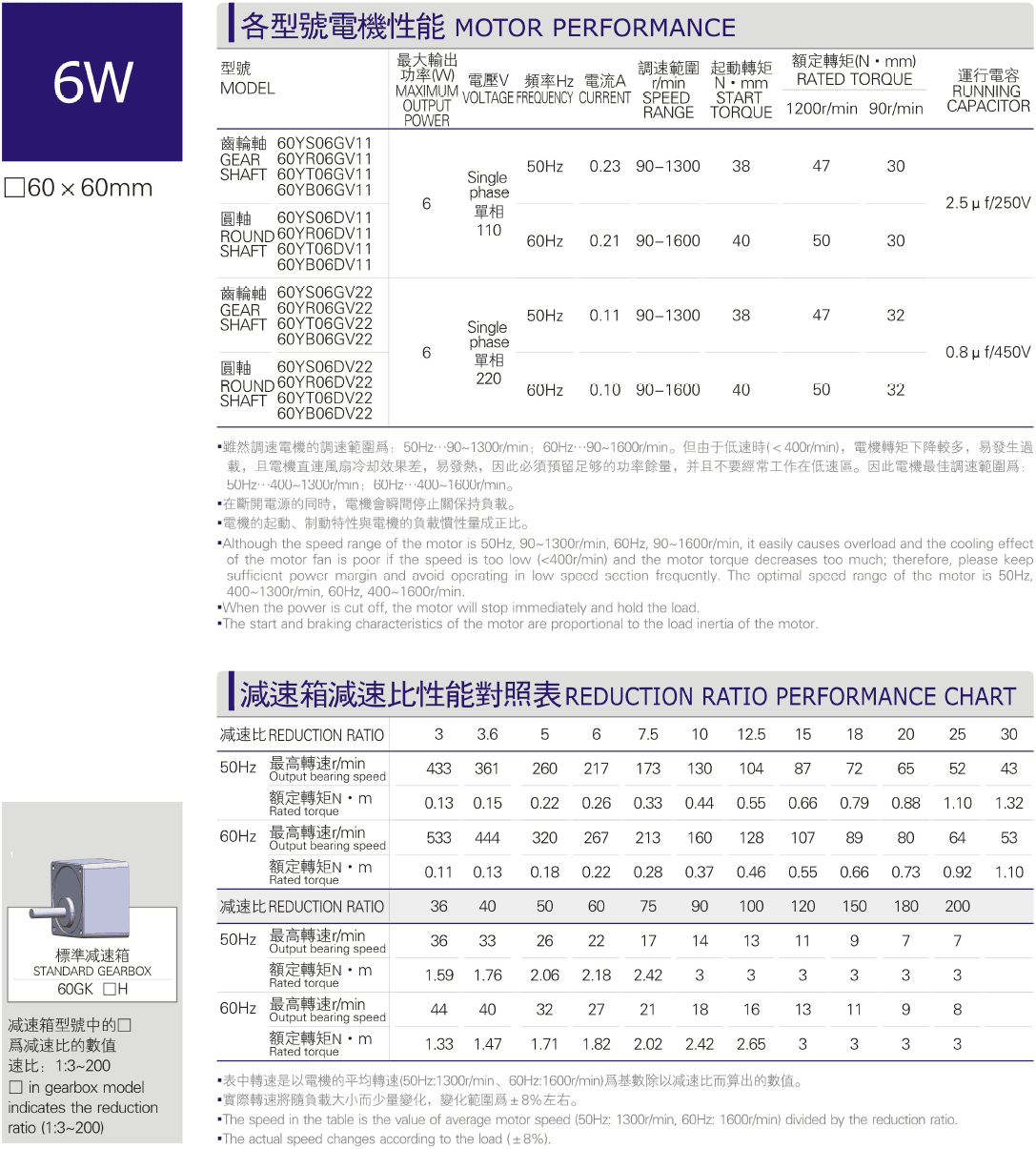

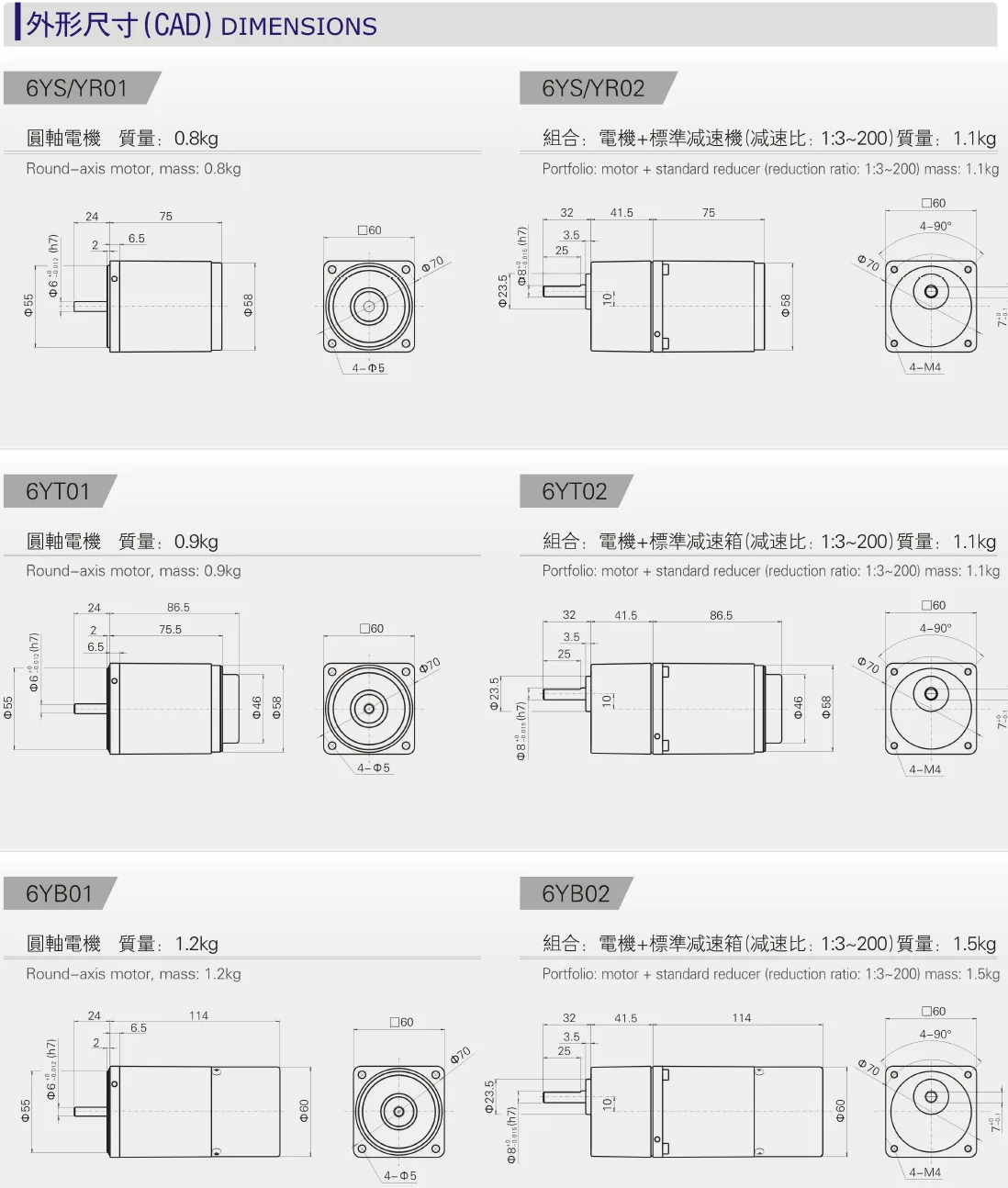

6W

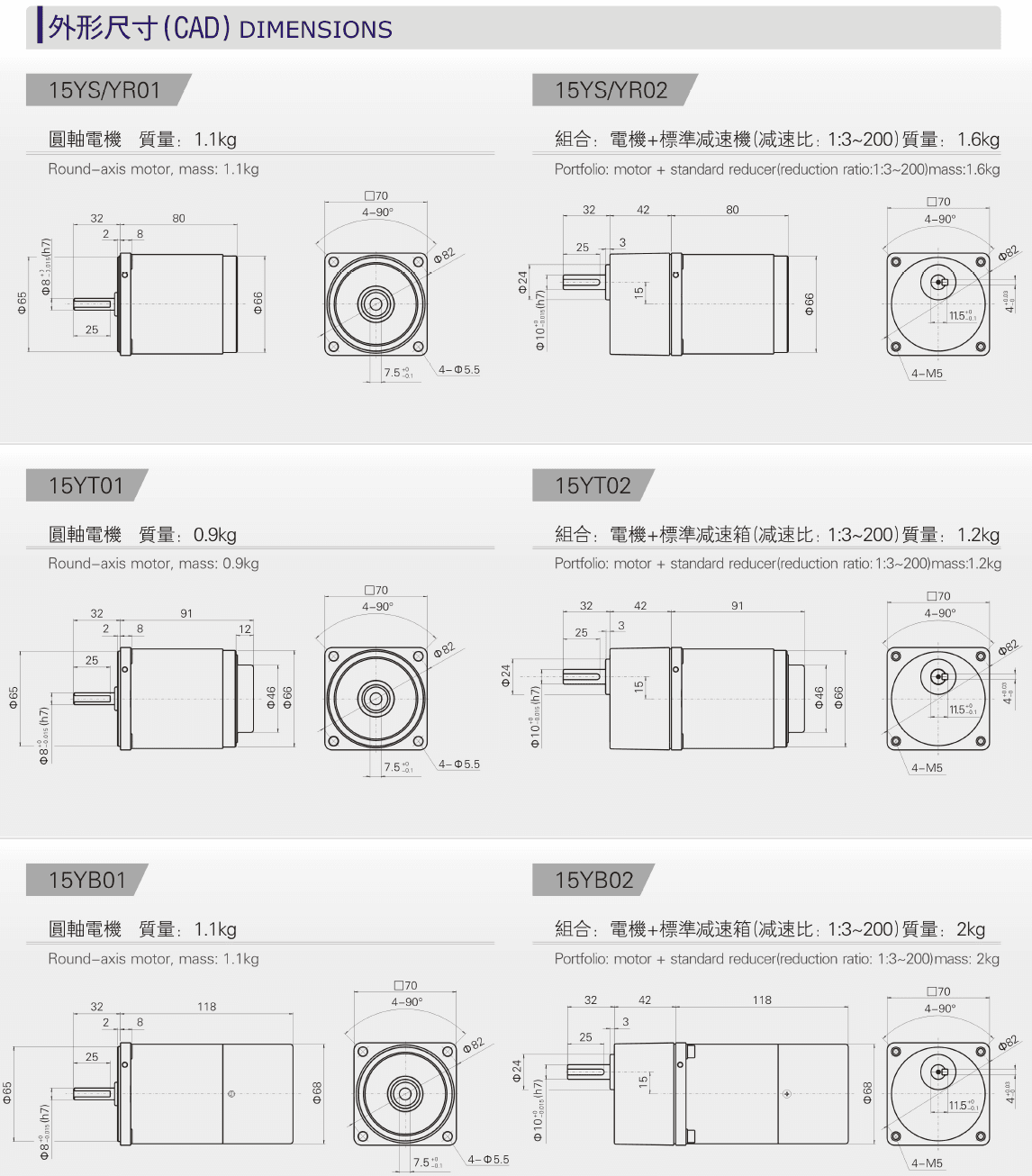

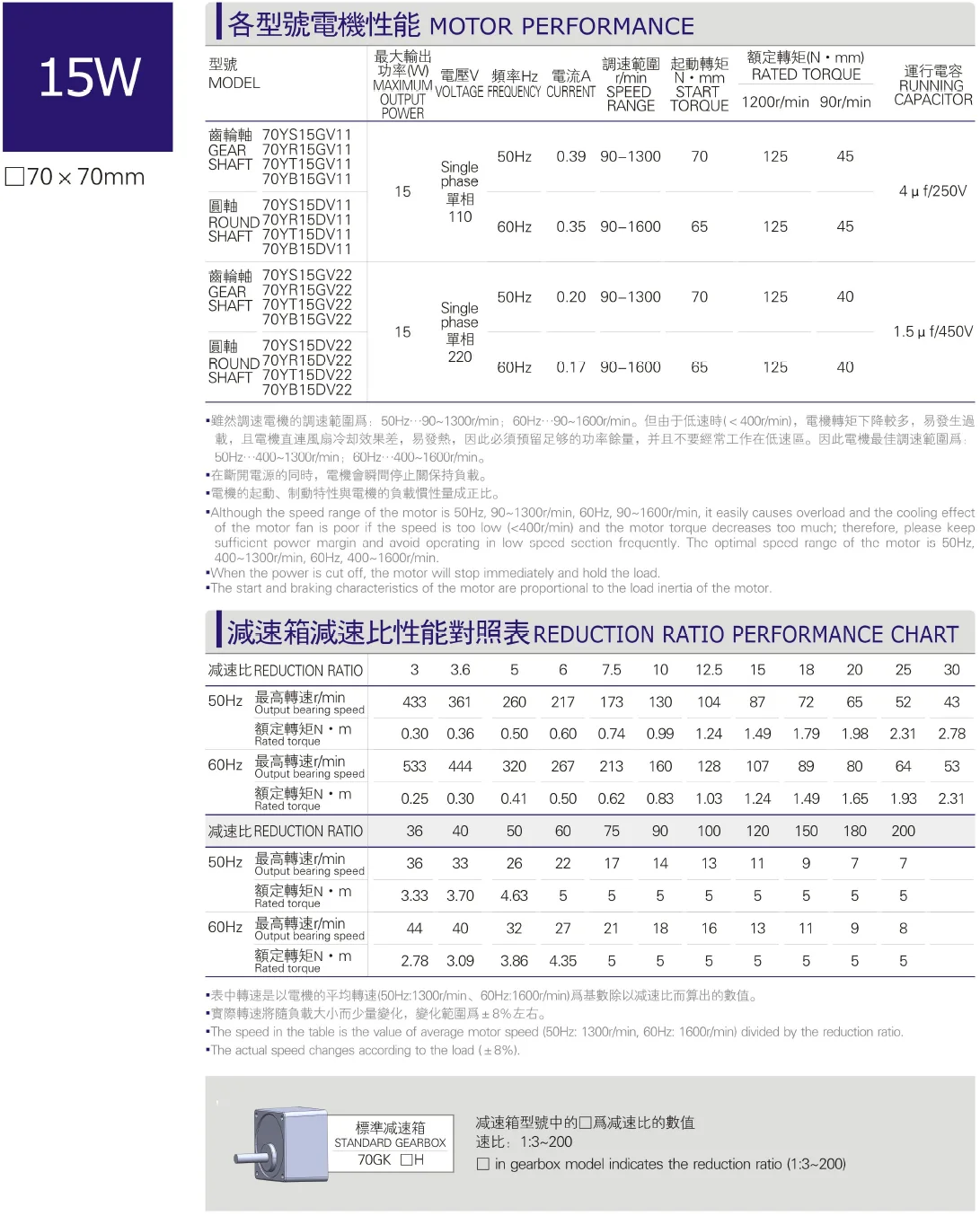

15W

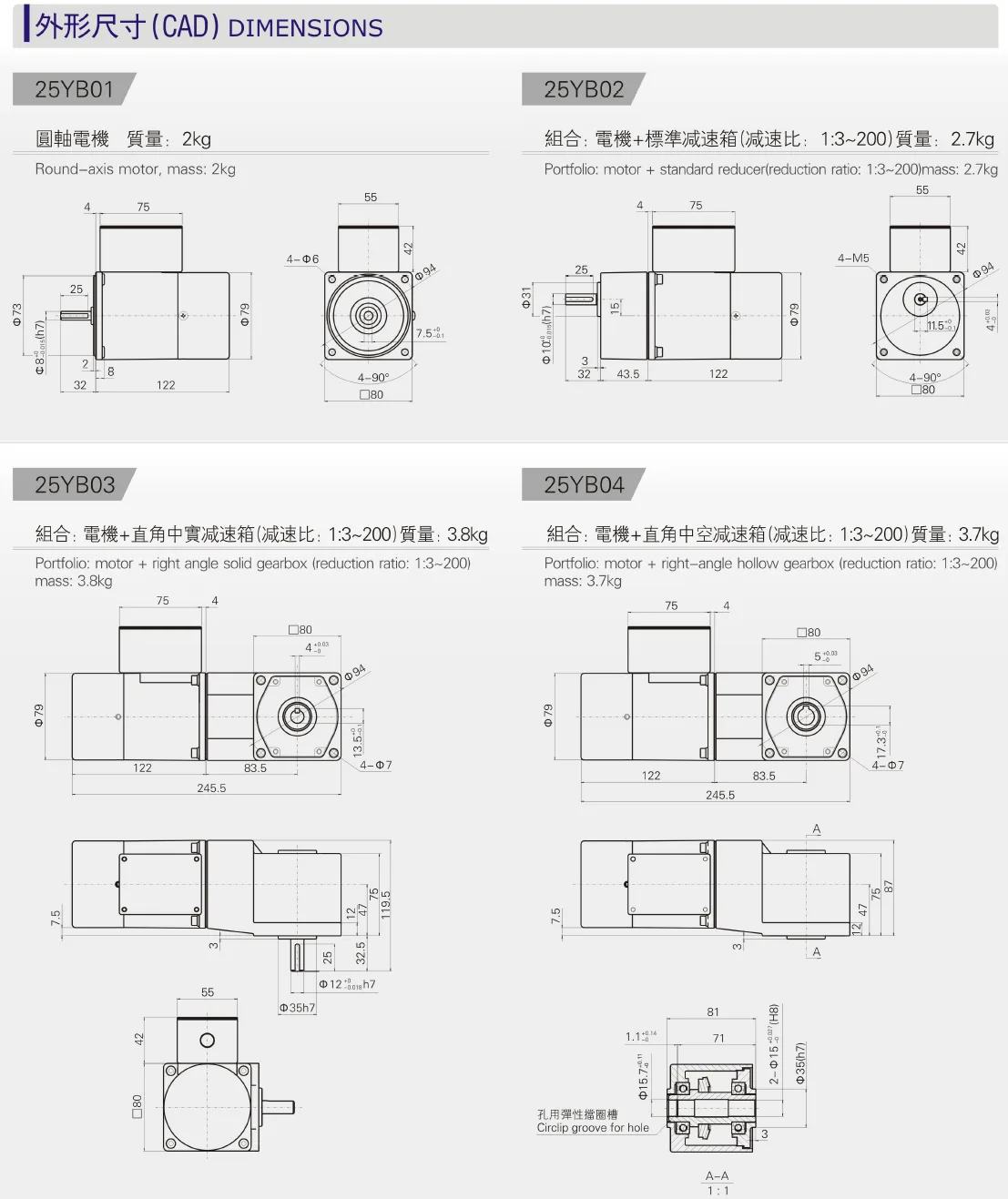

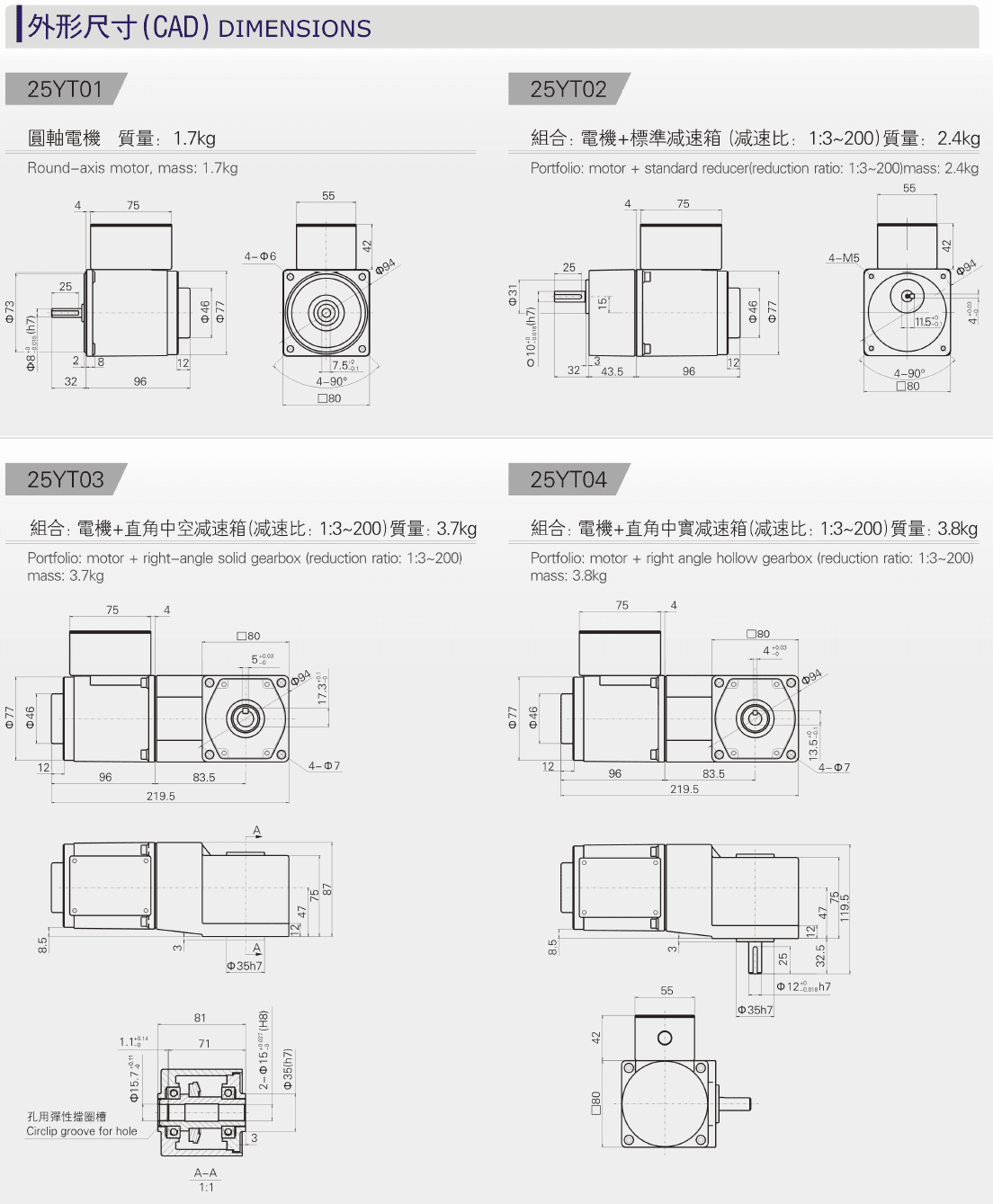

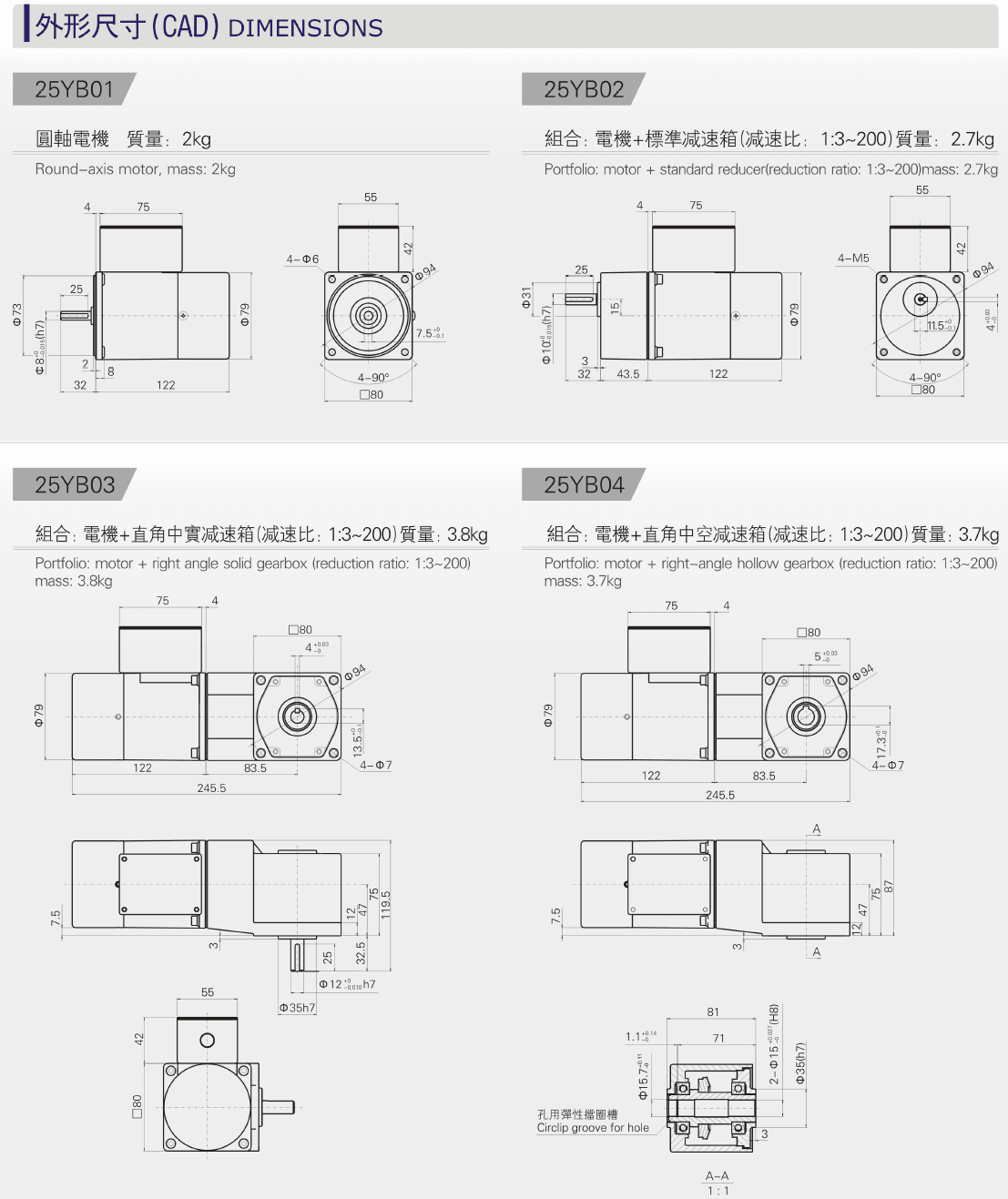

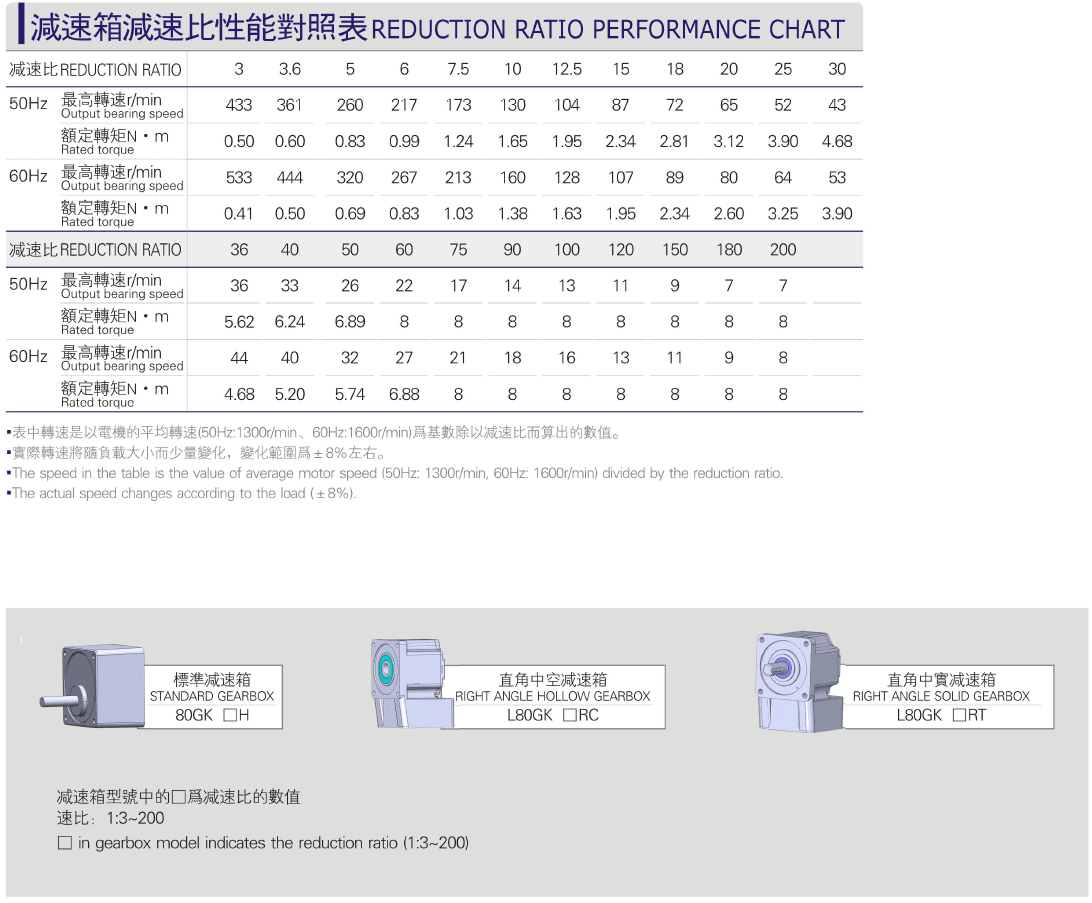

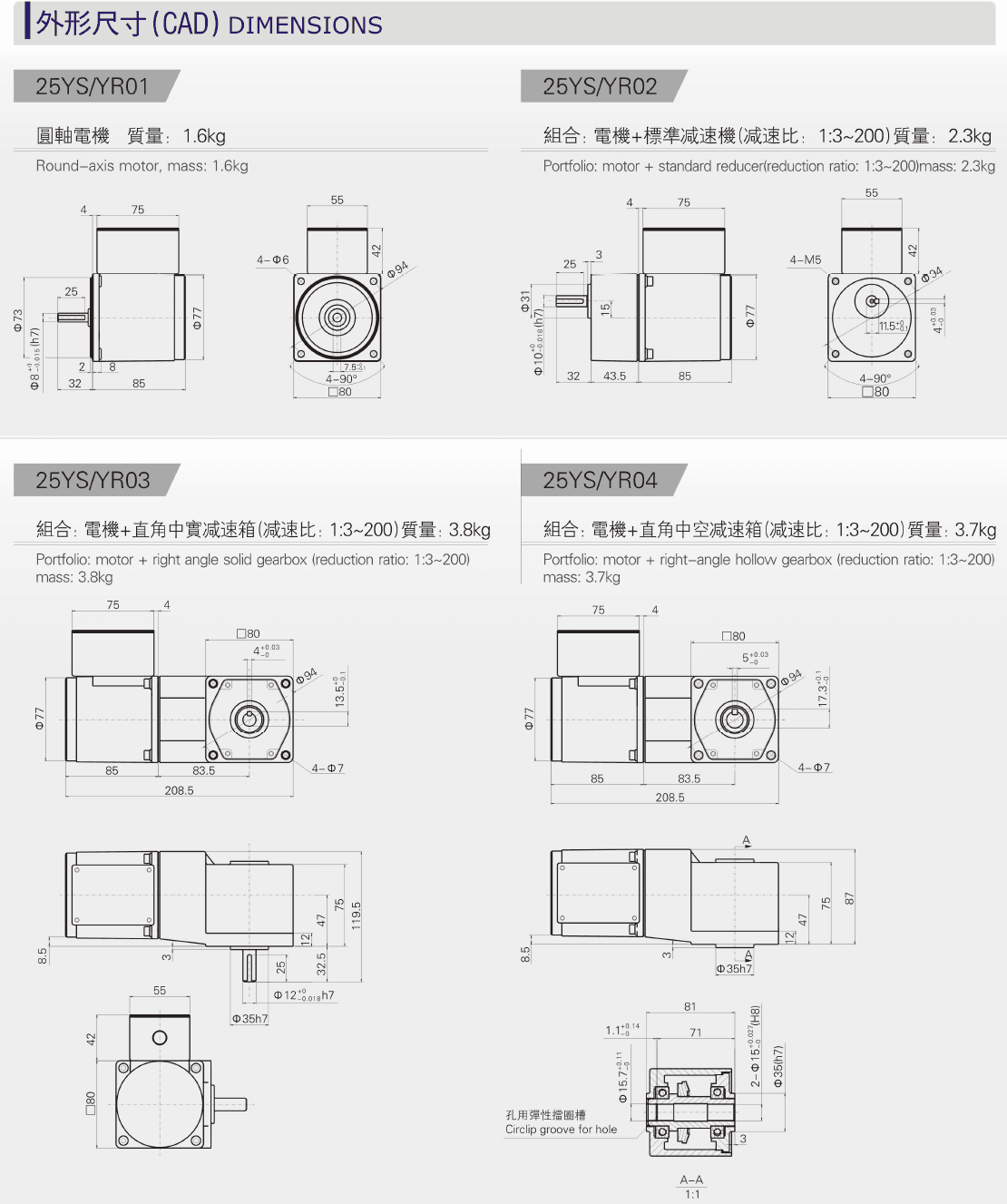

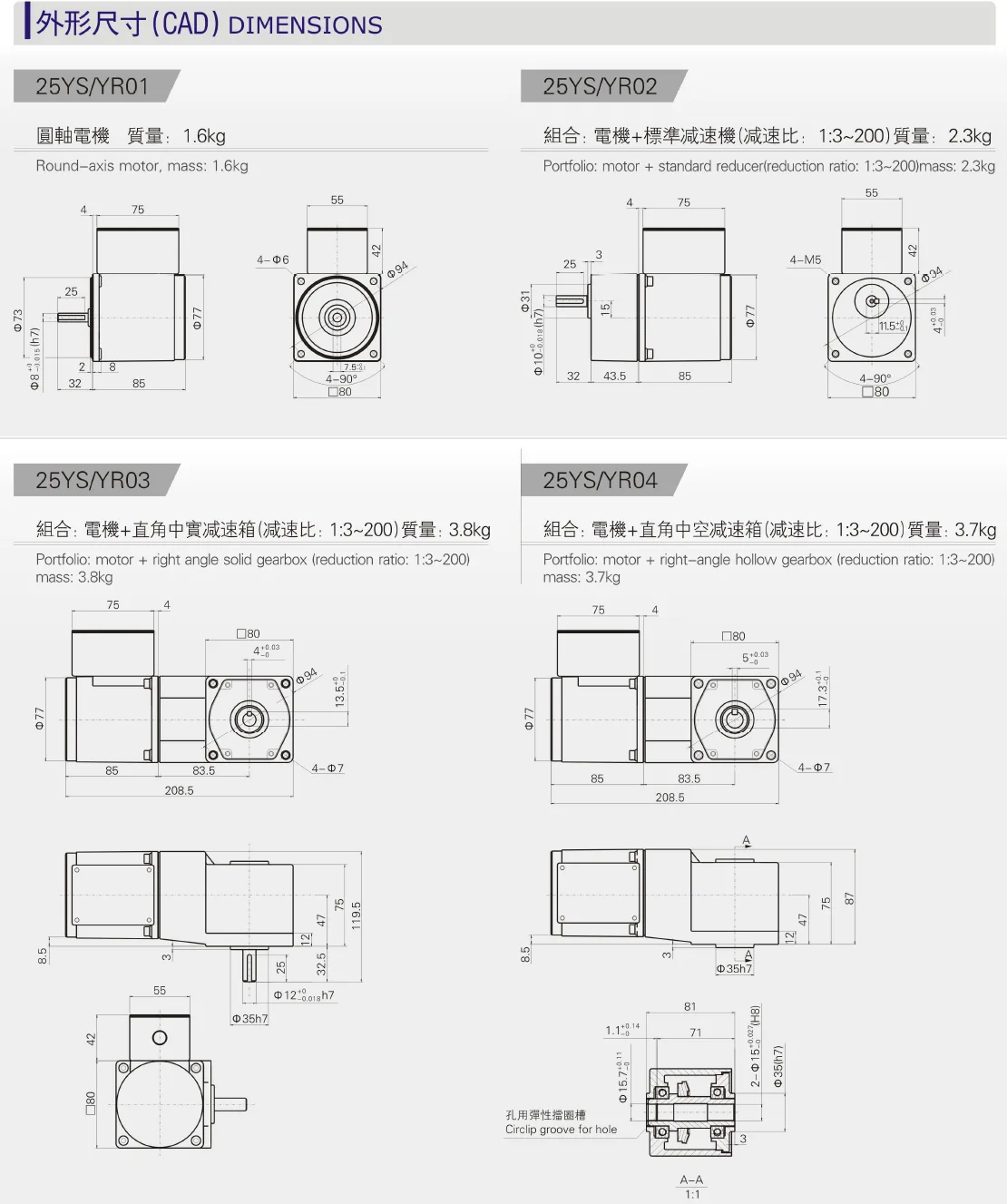

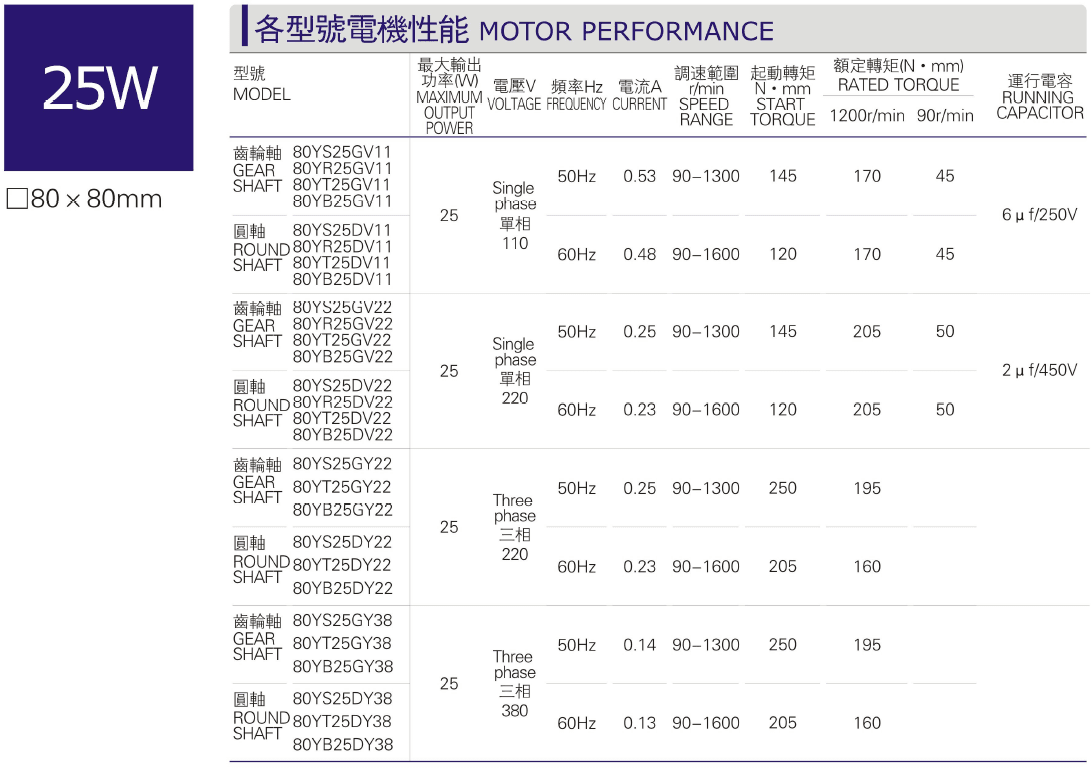

25W

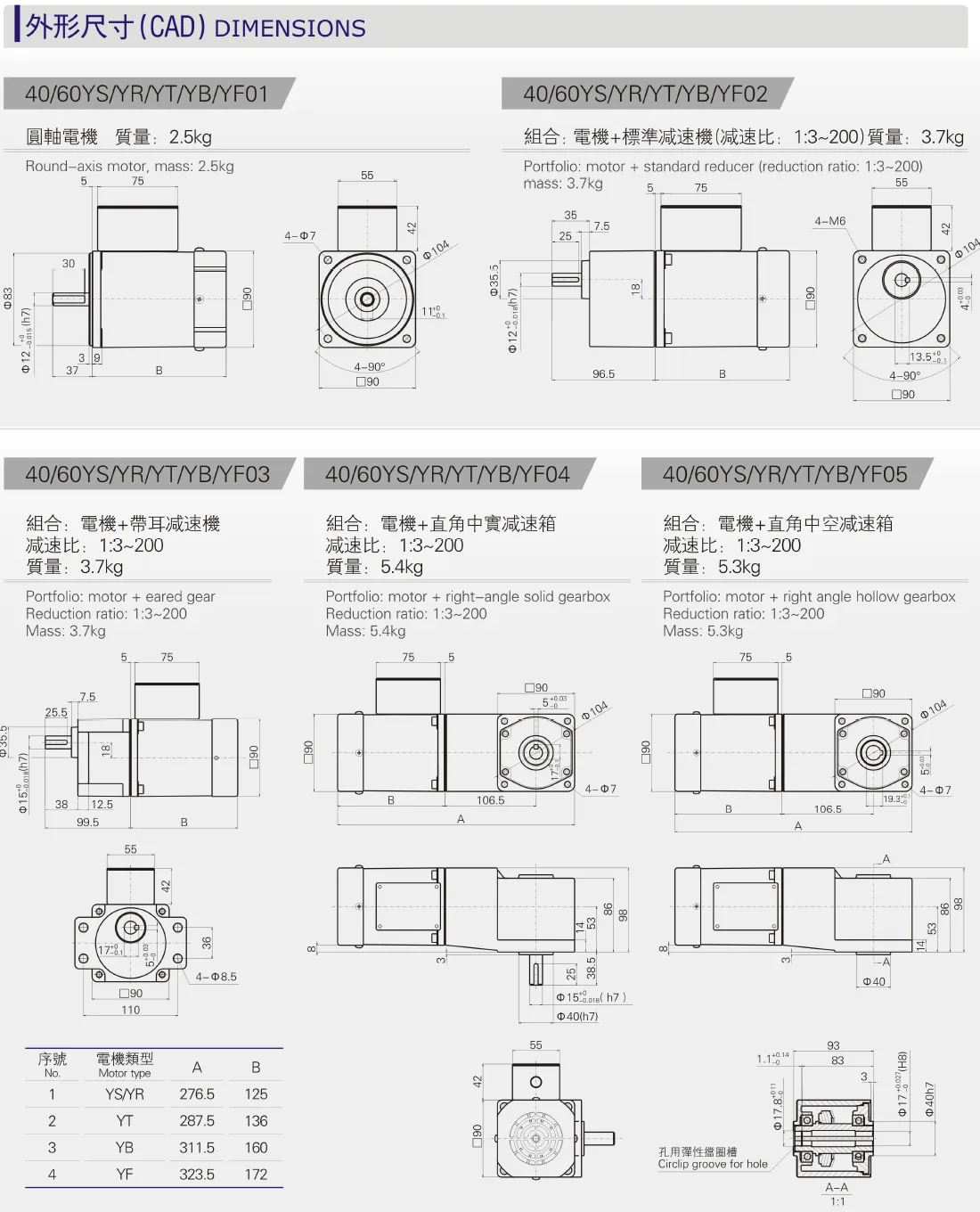

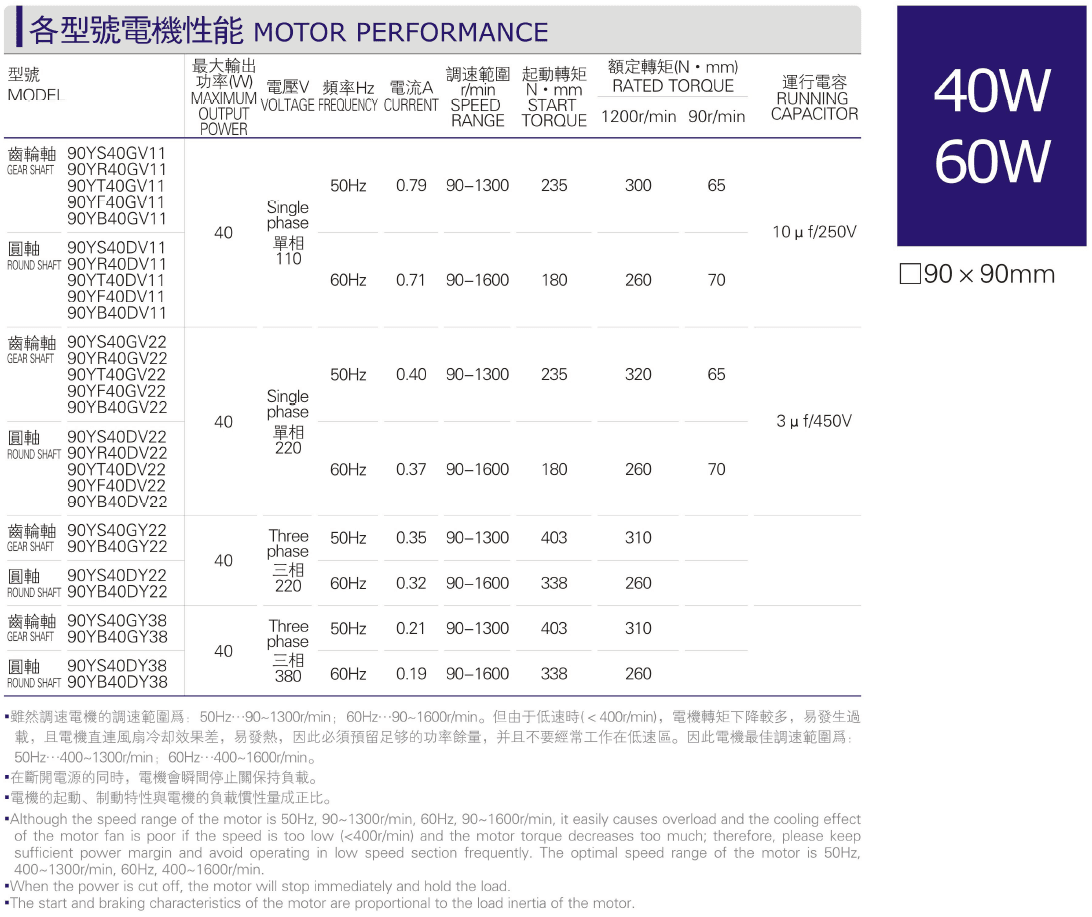

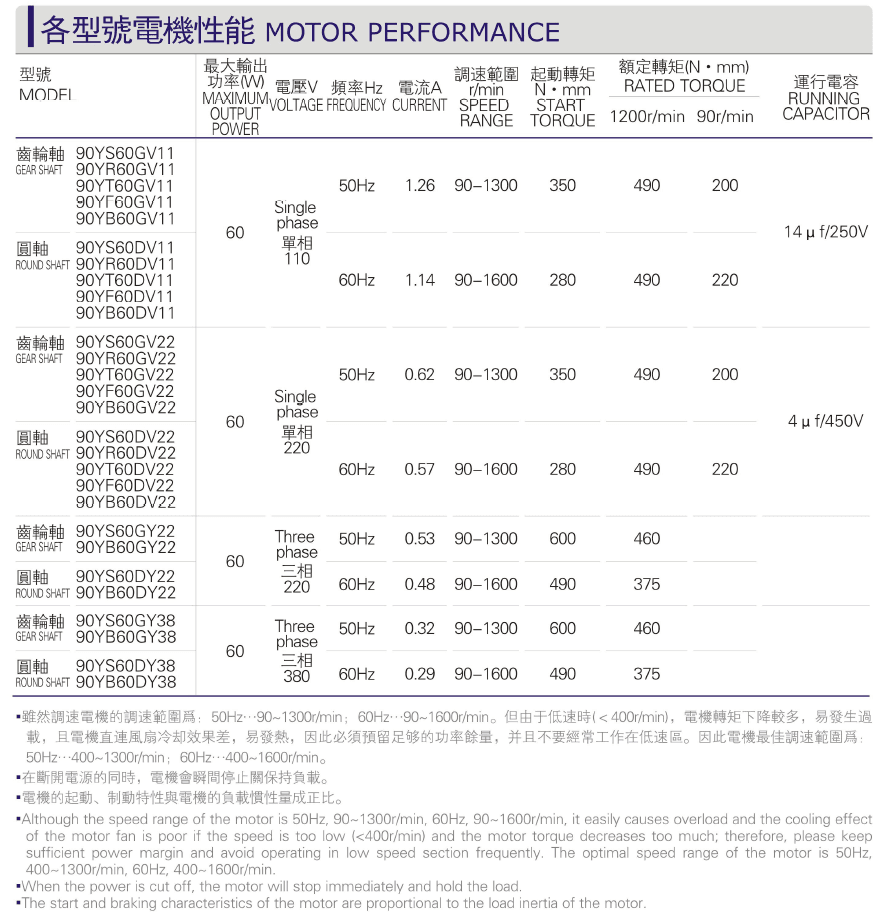

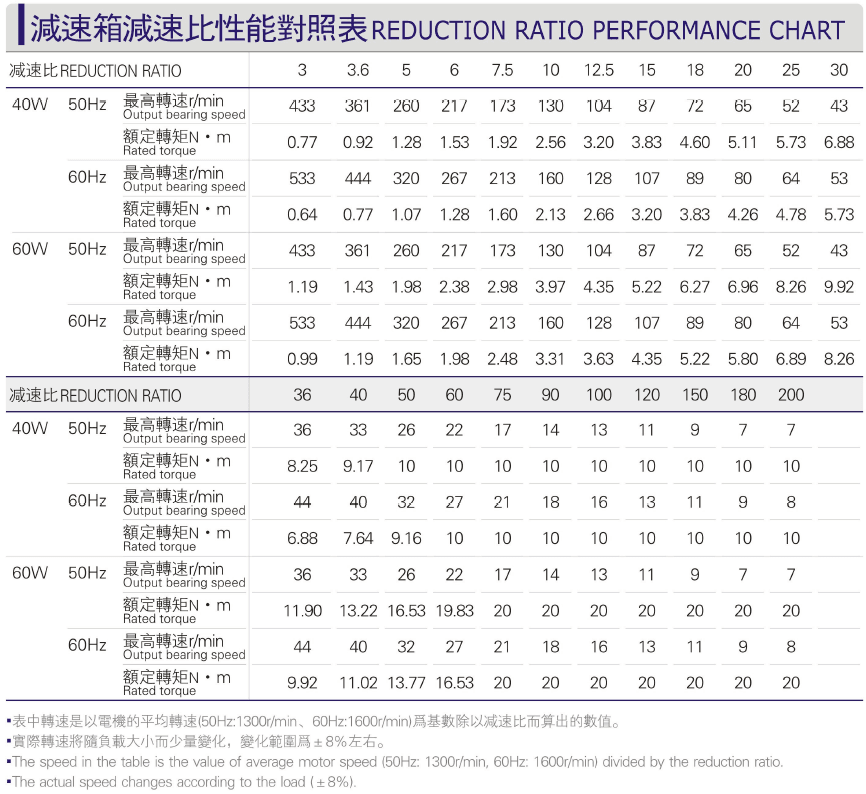

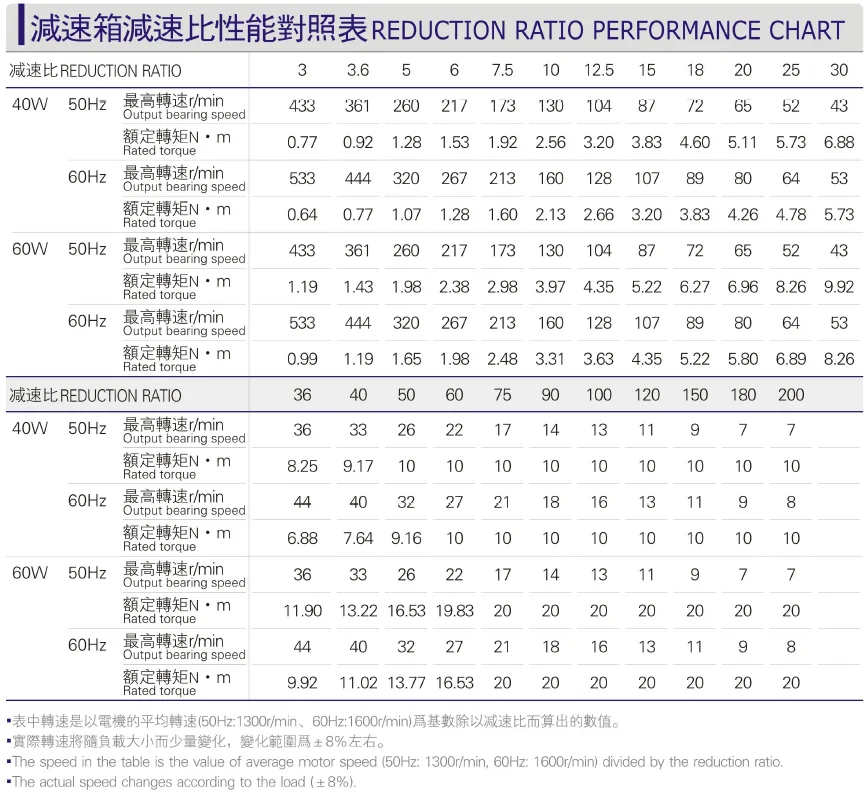

40-60W

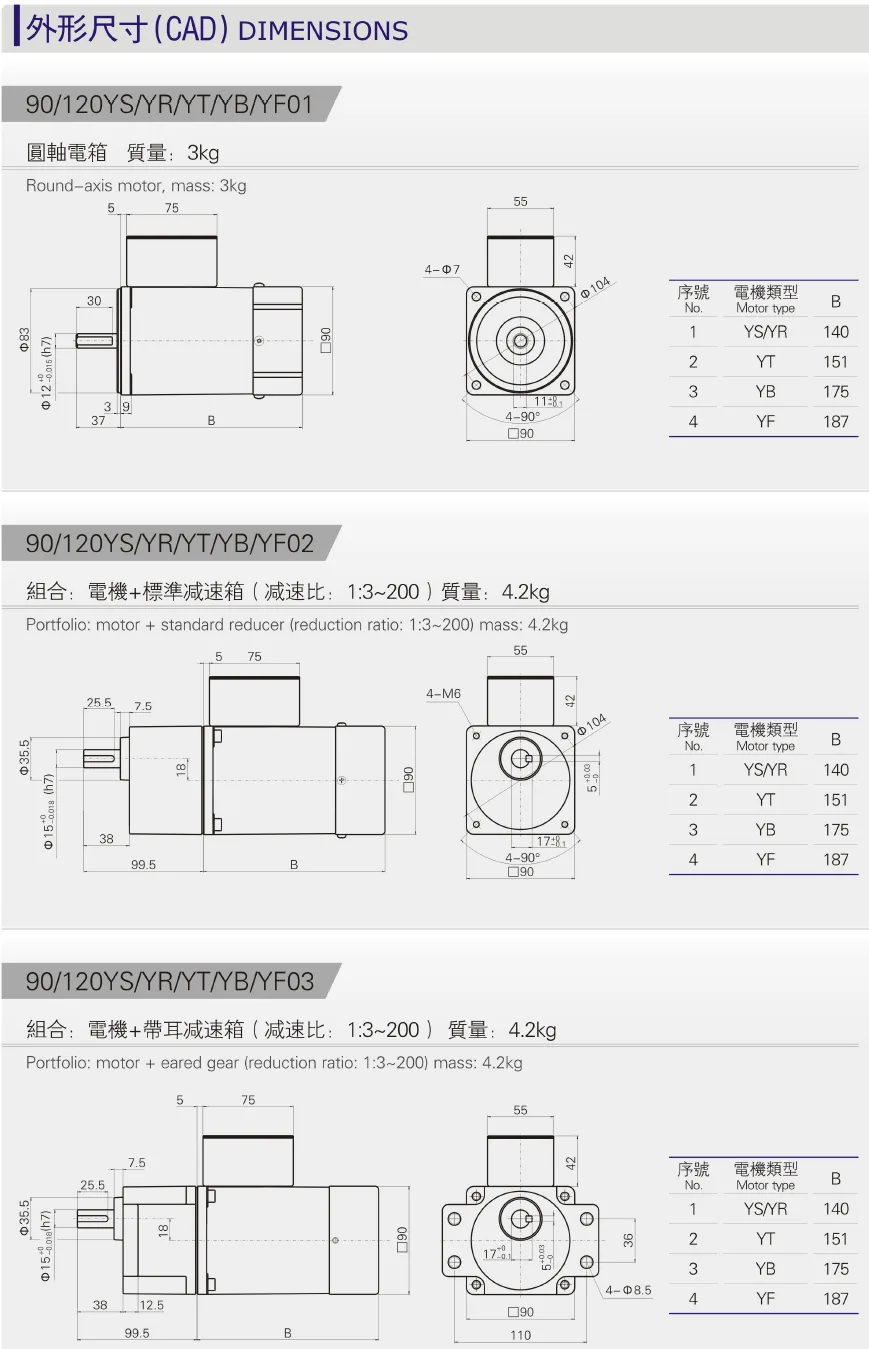

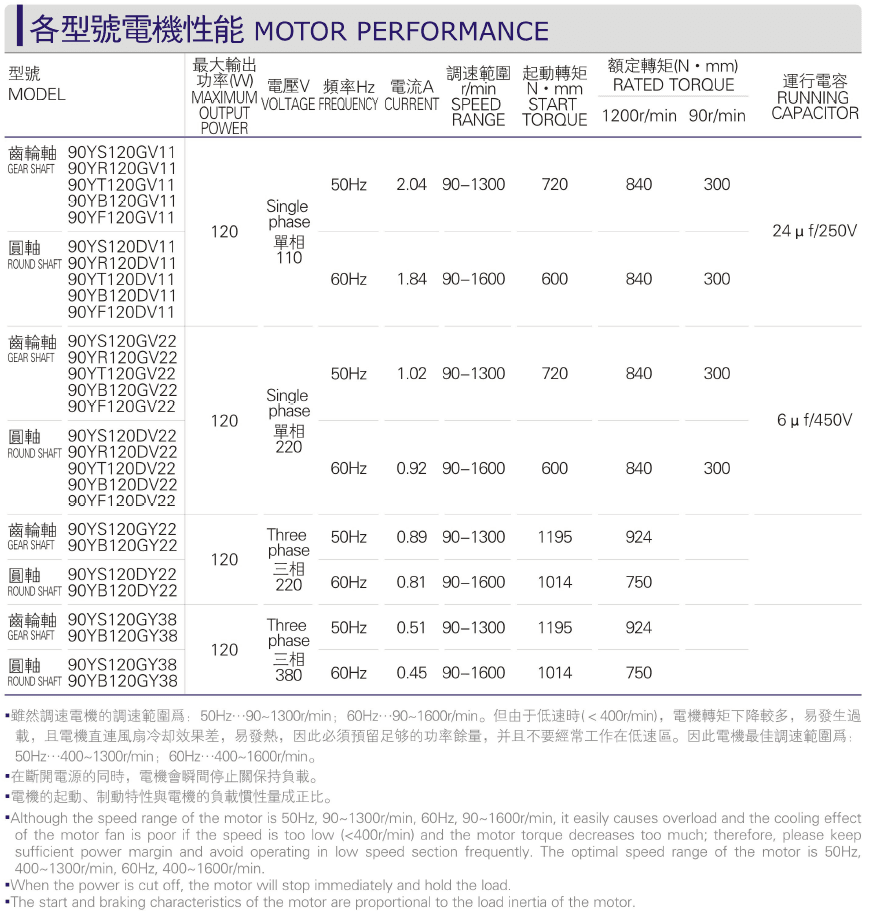

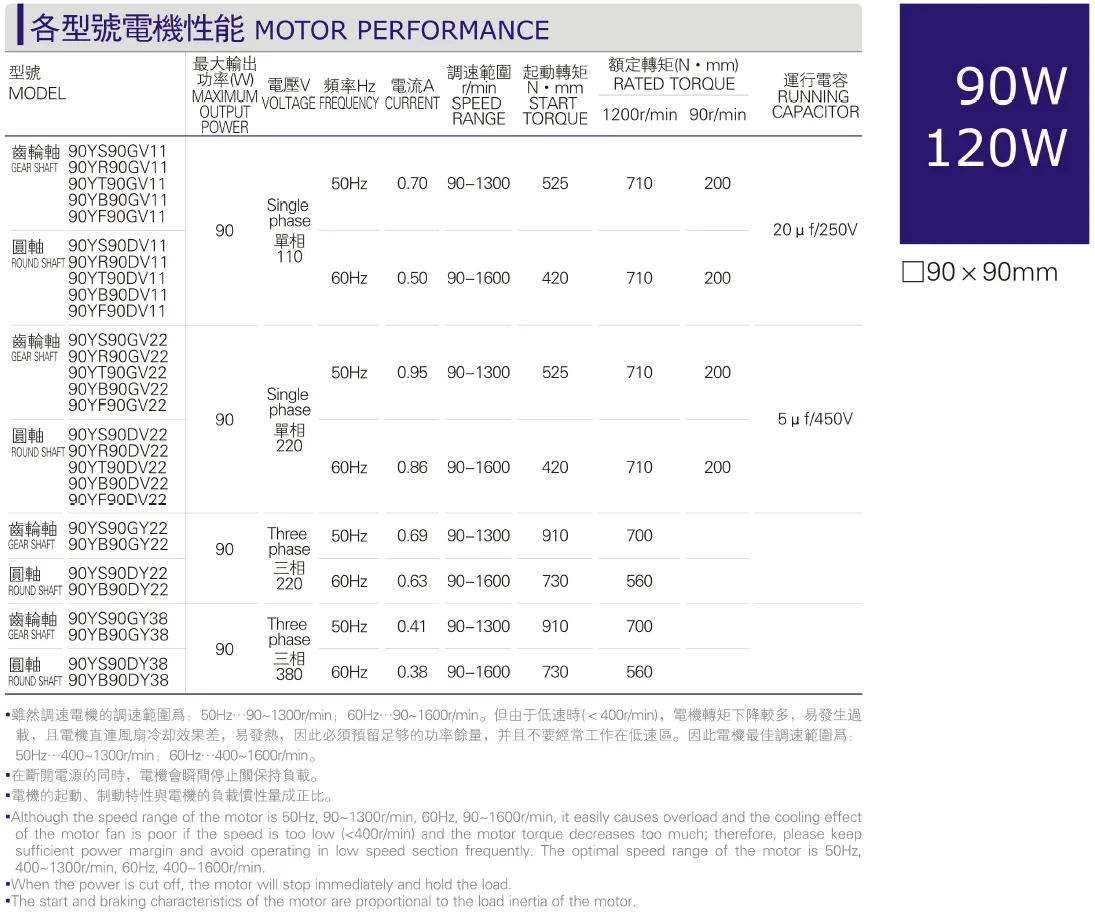

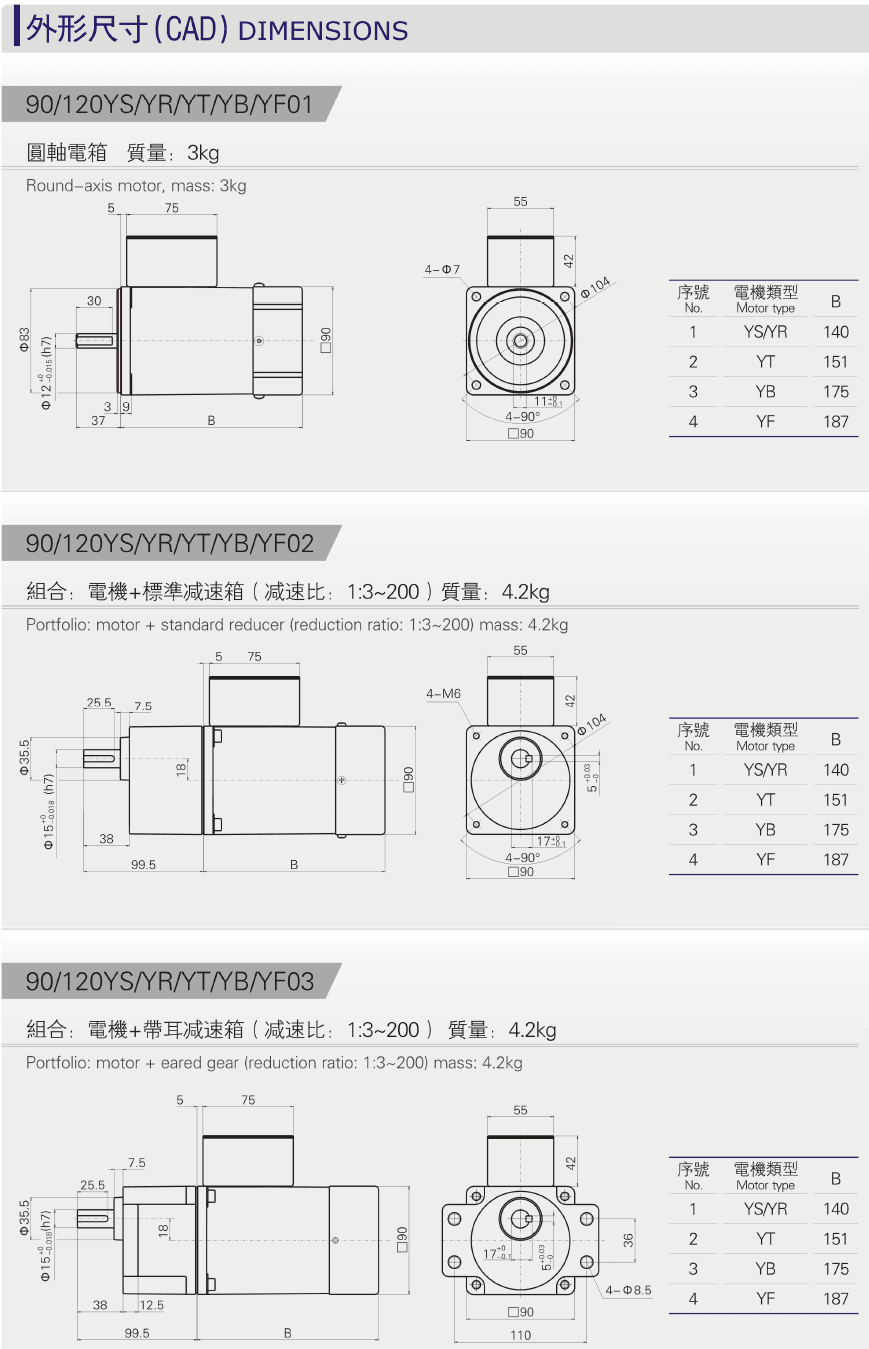

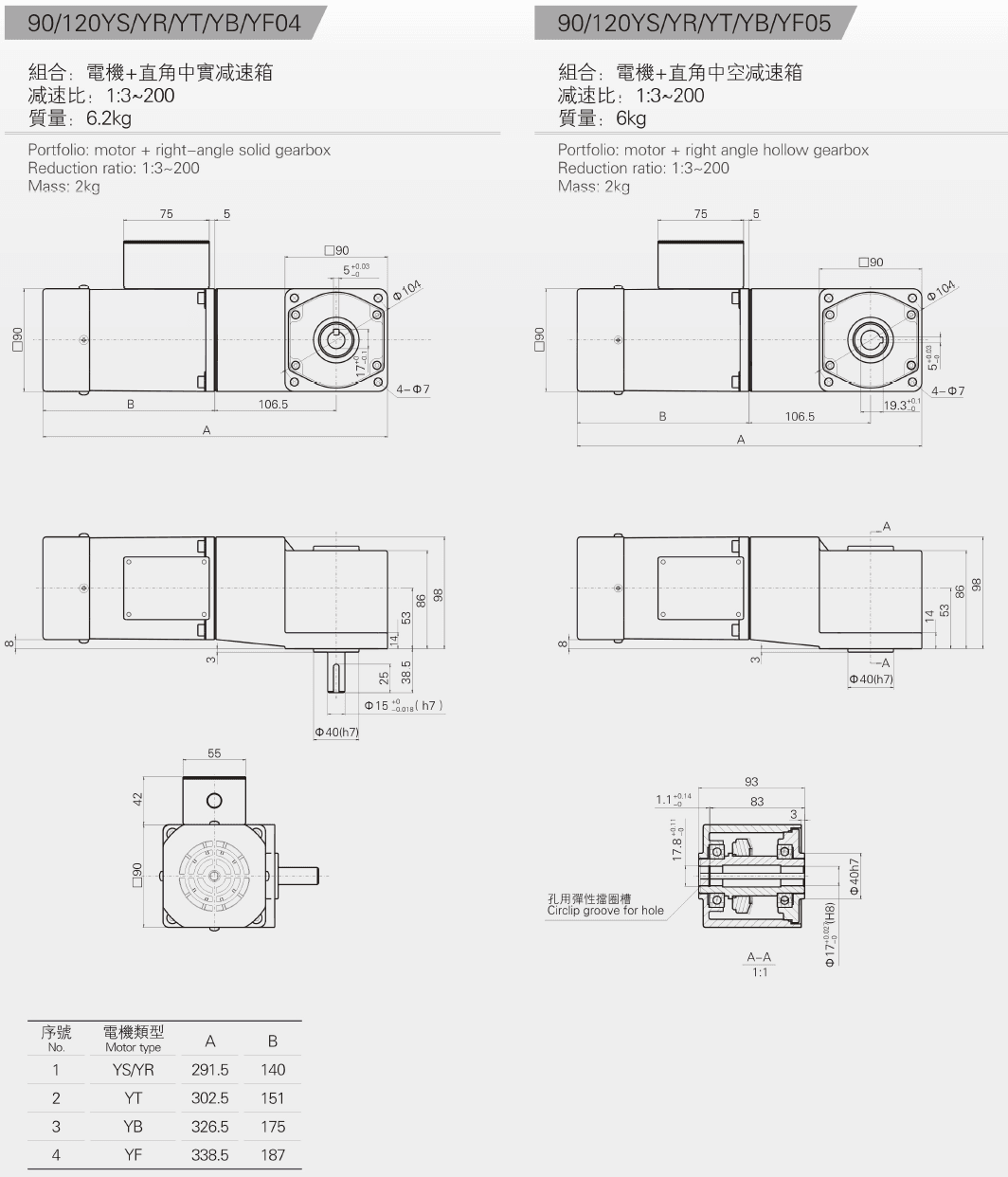

90-120W

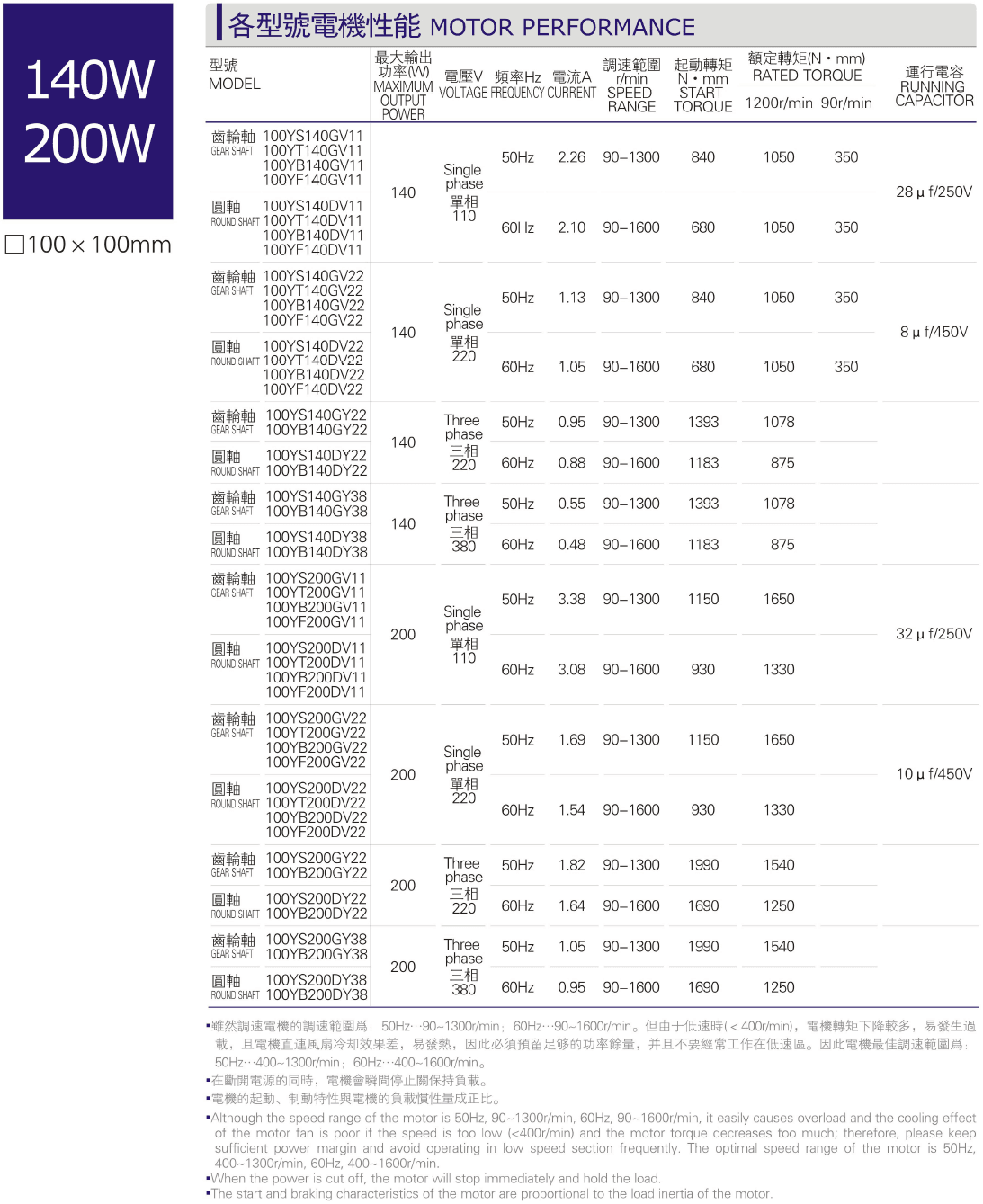

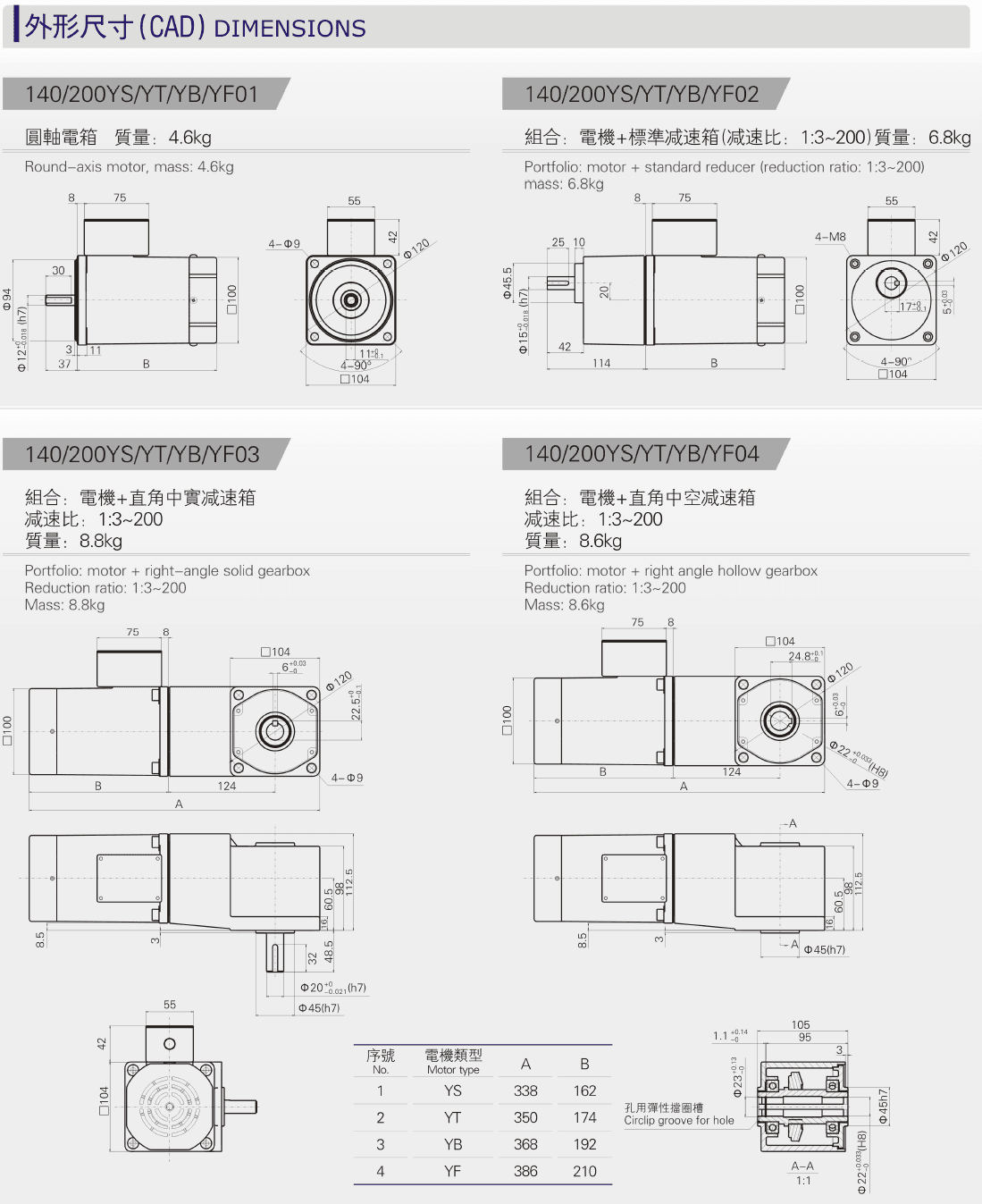

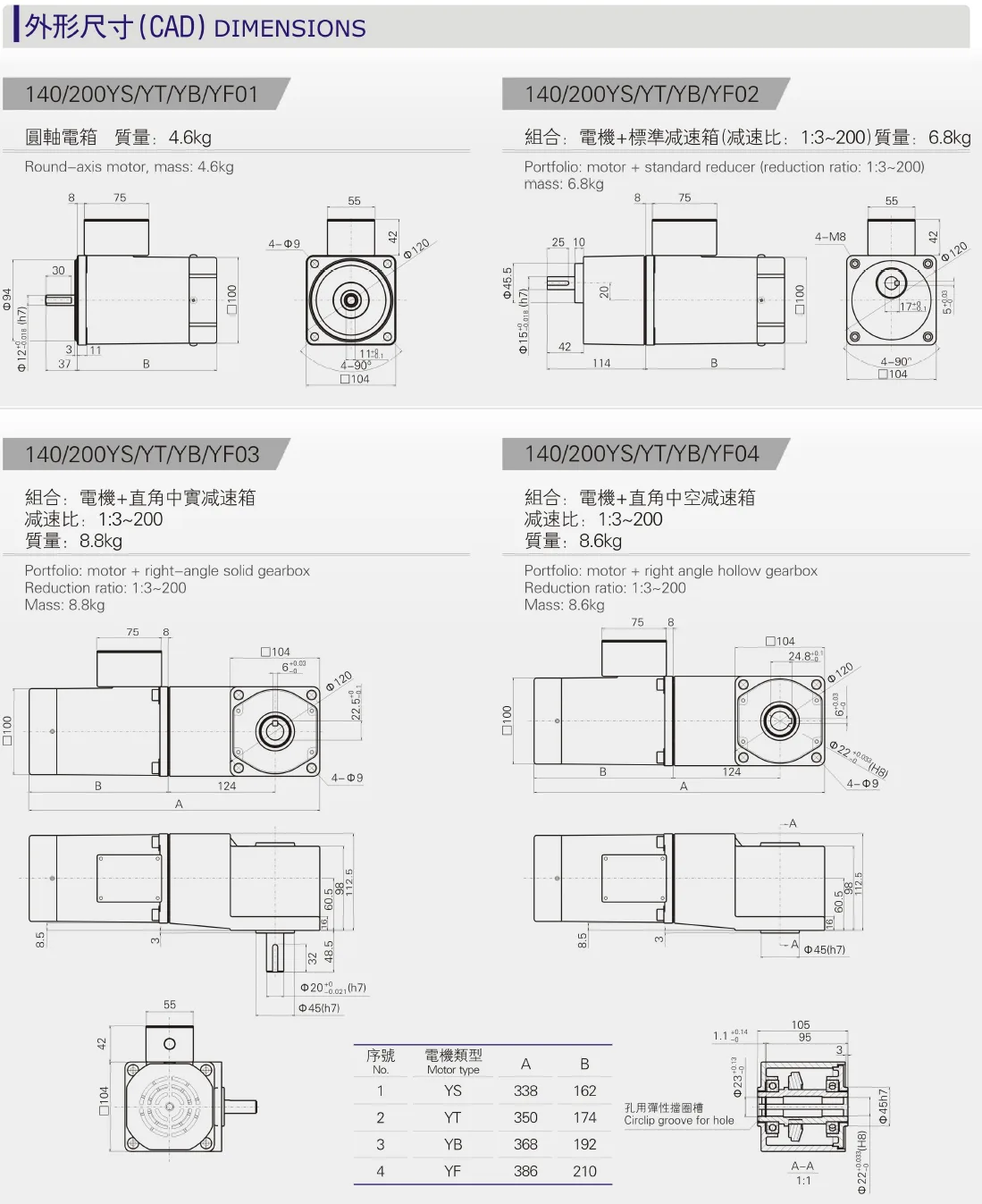

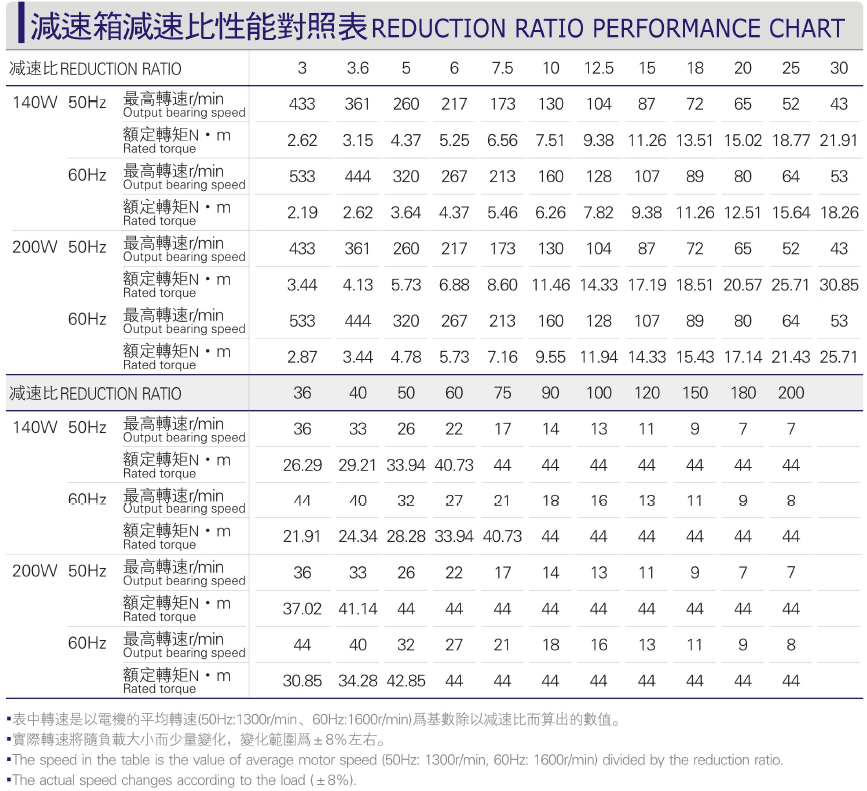

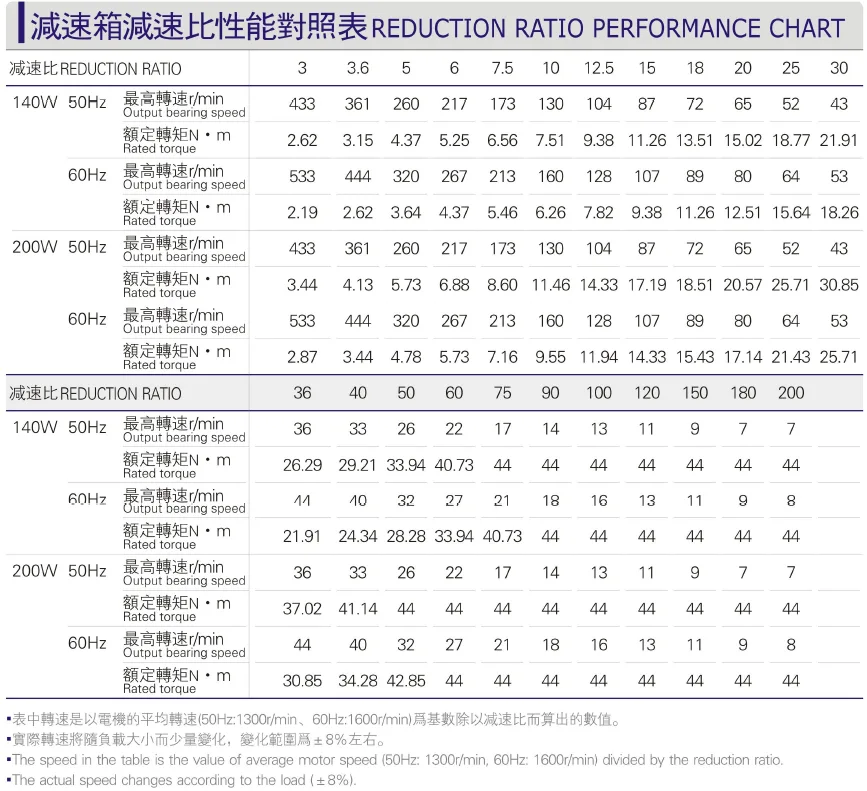

140-200W

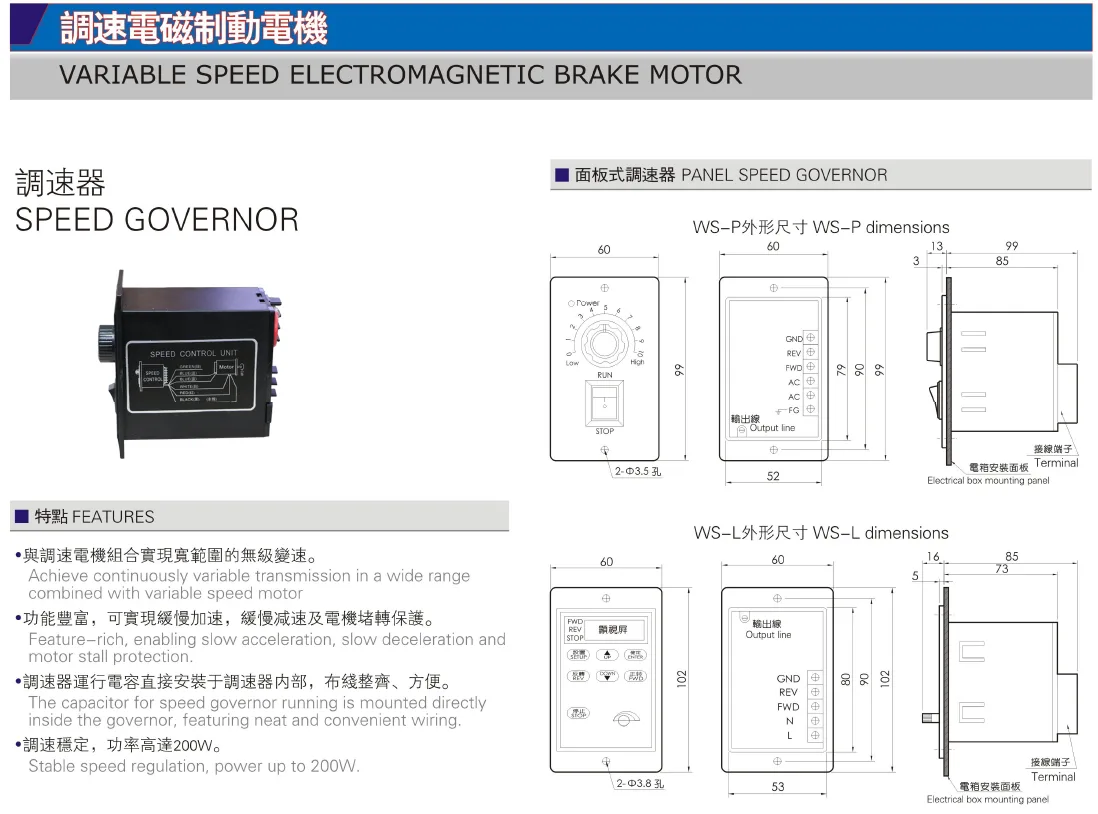

Adjustable speed electromagnetic brake motor
6W
15W
25W
40-60W
90-120W
140-200W
Adjustable speed electromagnetic brake motor

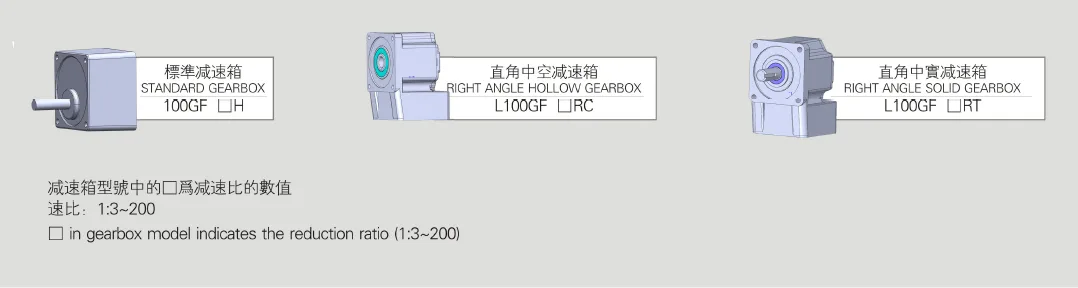

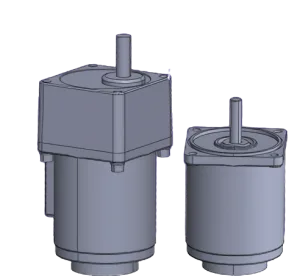

Micro gearbox
Standard gearbox
Speed ratio：1：3~1：500
Standard gearbox with ears
Speed ratio：1：3~1：500
RV worm gear
Speed ratio：1：5~1：80
Right angled hollow gearbox
Speed ratio：1：3~1：180
Right angle solid reduction gearbox
Speed ratio：1：3~1：180

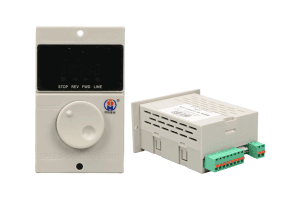

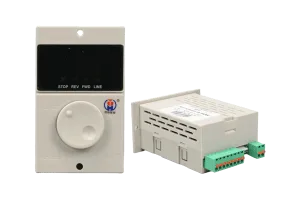

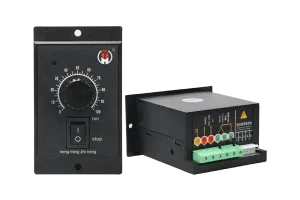

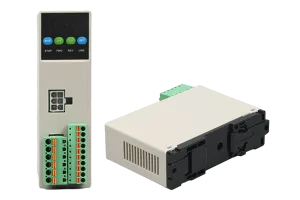

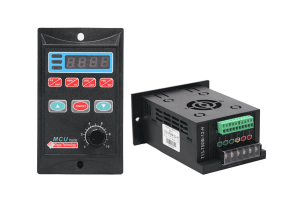

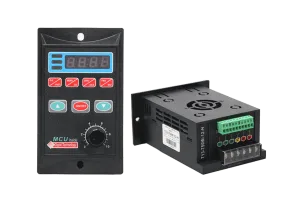

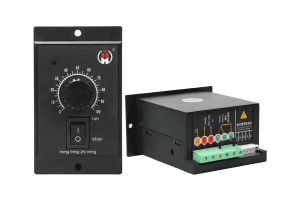

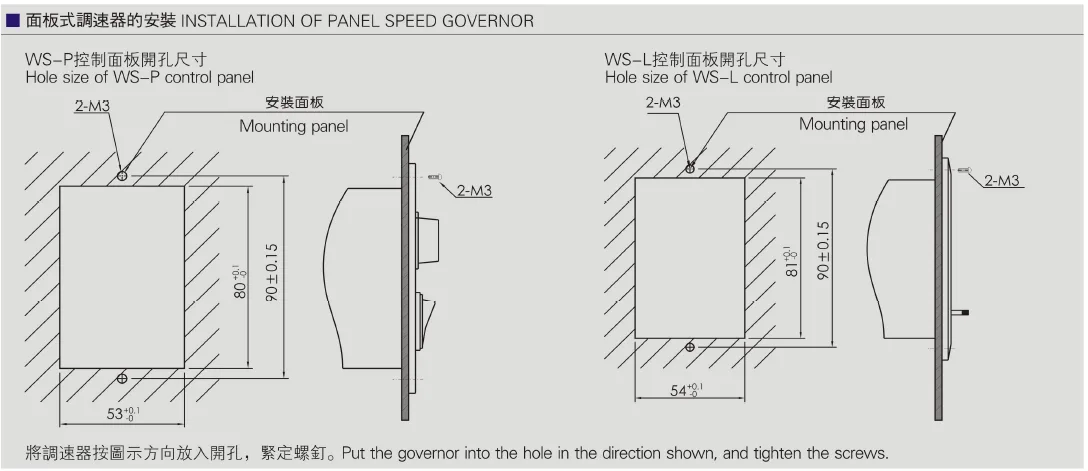

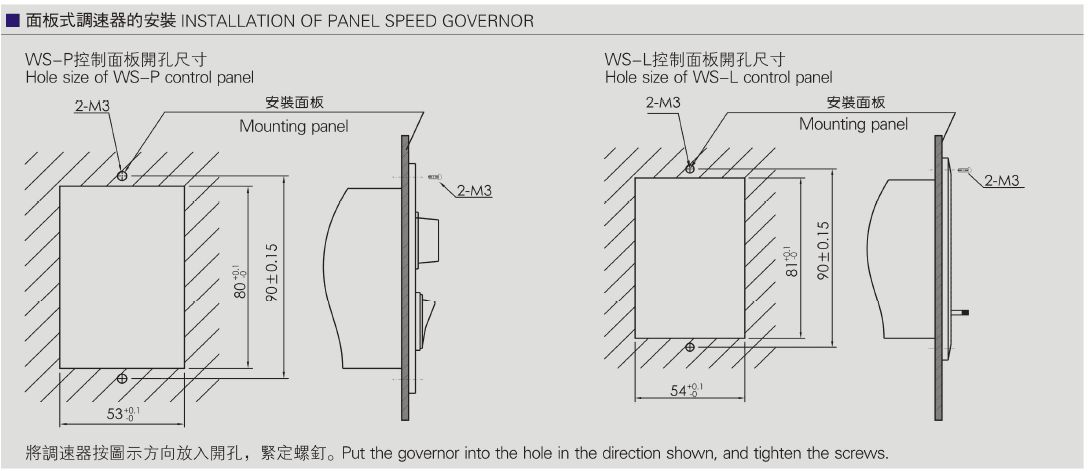

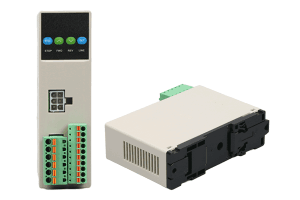

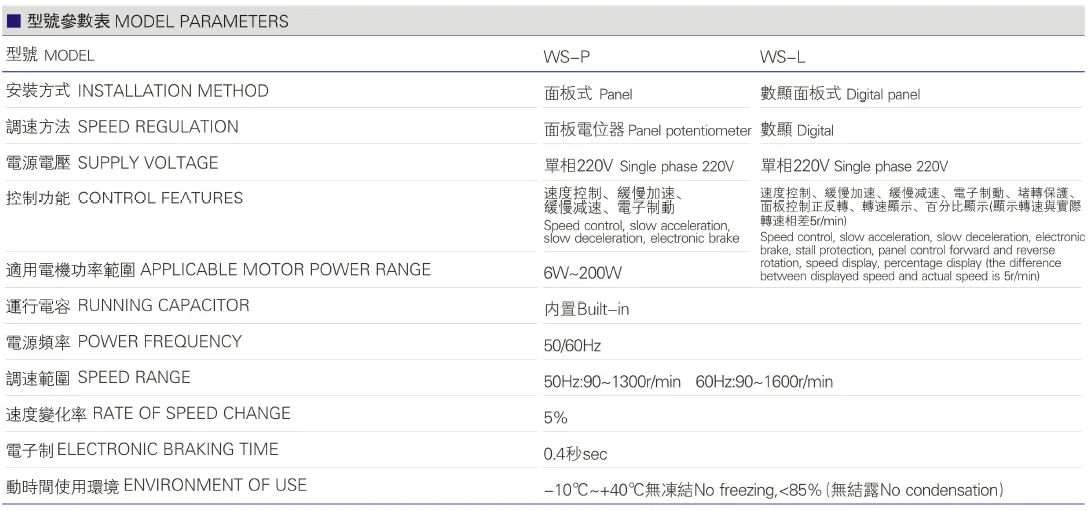

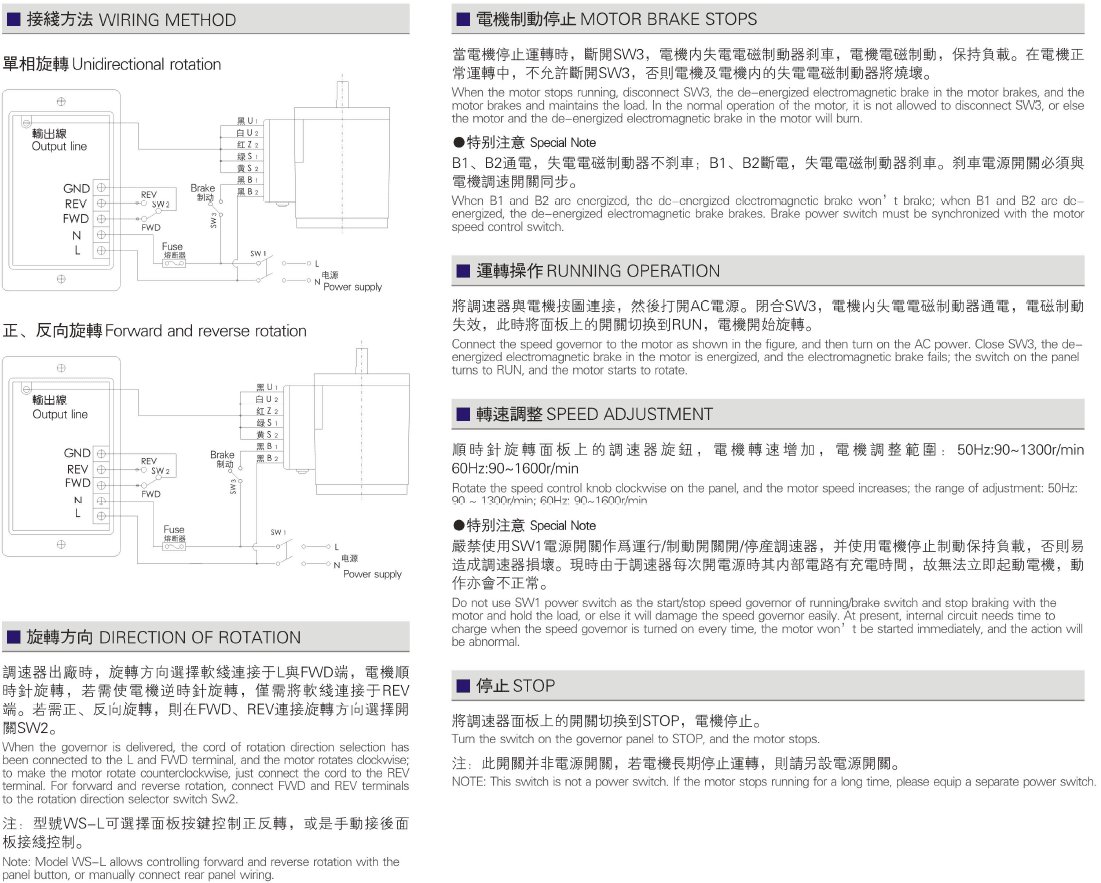

Speed regulator and frequency converter
