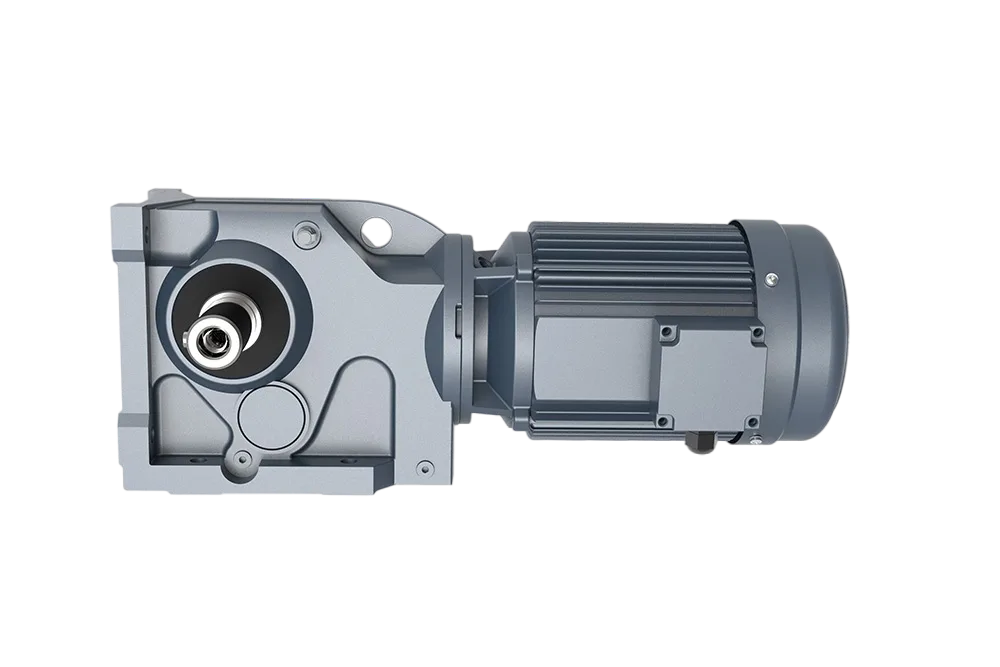

K Series Helical-bevel Gear Motors Description
Series K – Right angle helical bevel geared motors have high load carrying capacities, increased efficiency over worm units, quiet running and reliability.
The Series K geared motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts, also available with hollow shaft.
Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket.
These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as triple and quintuple reduction units in flange, foot or shaft mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.

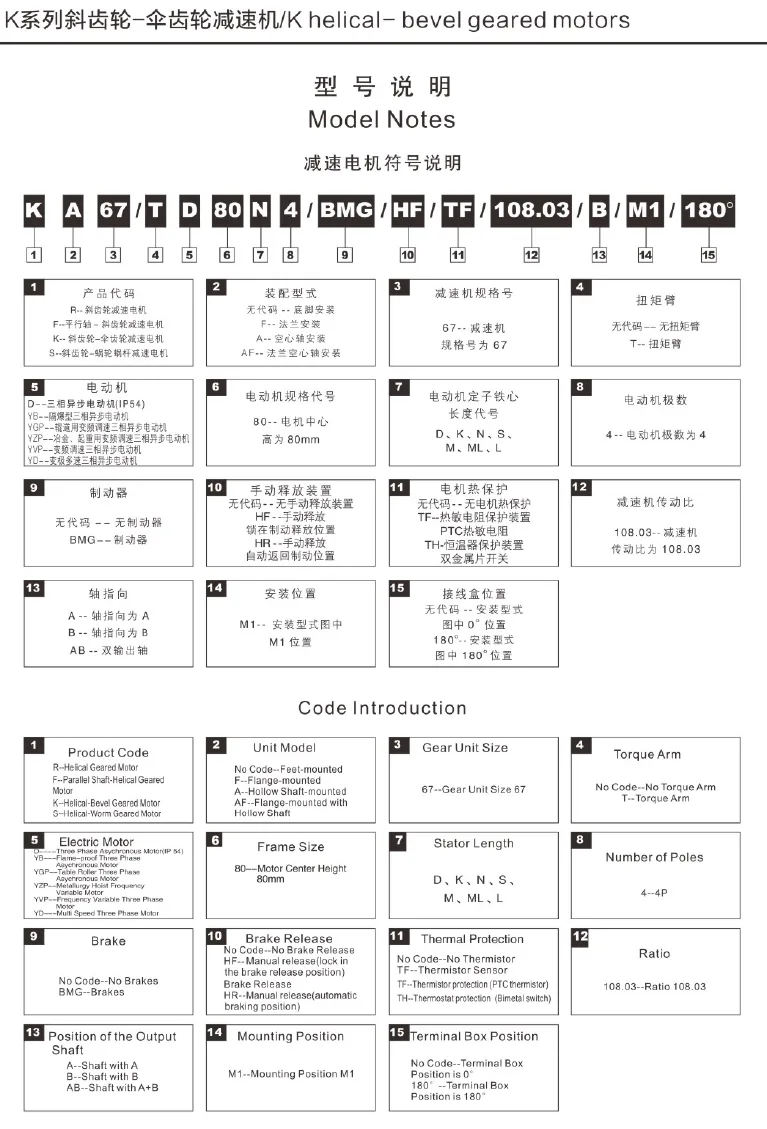

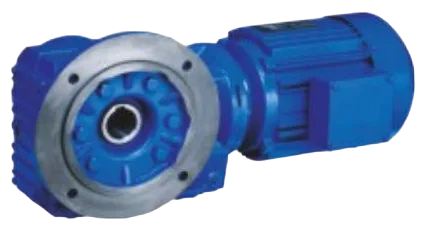

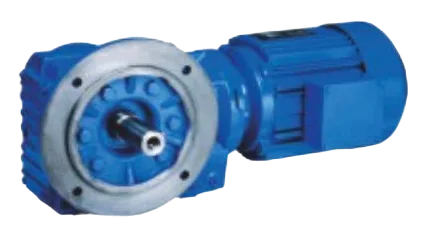

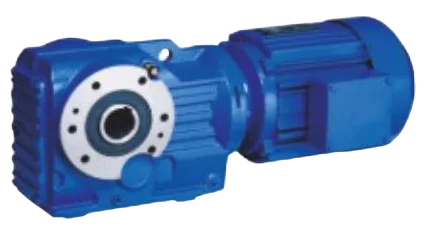

K Series Helical-bevel Gear Motors Models
- Rated Power: 0.12kW~200kW
- Max. Torque: Up to 50000N.m
- Gear Arrangement: Hardened Helical-bevel Gears
- Shafts Position: Right Angle

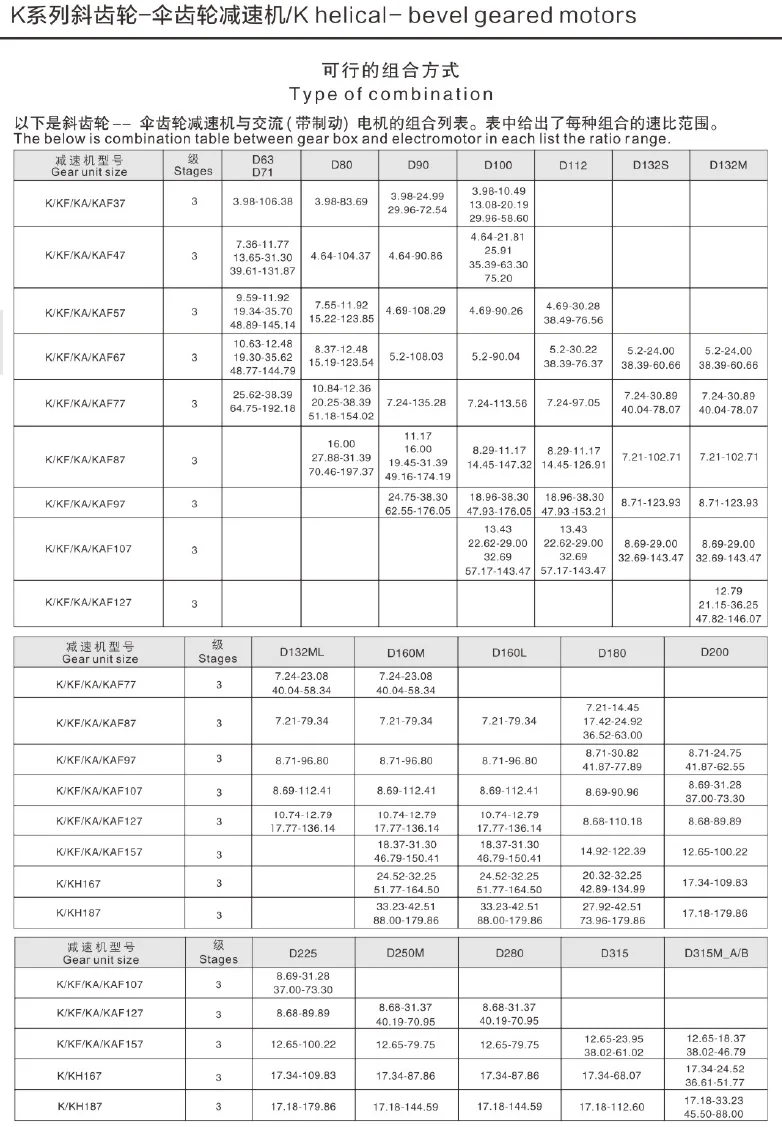

- Ratio: 5.36~178.37

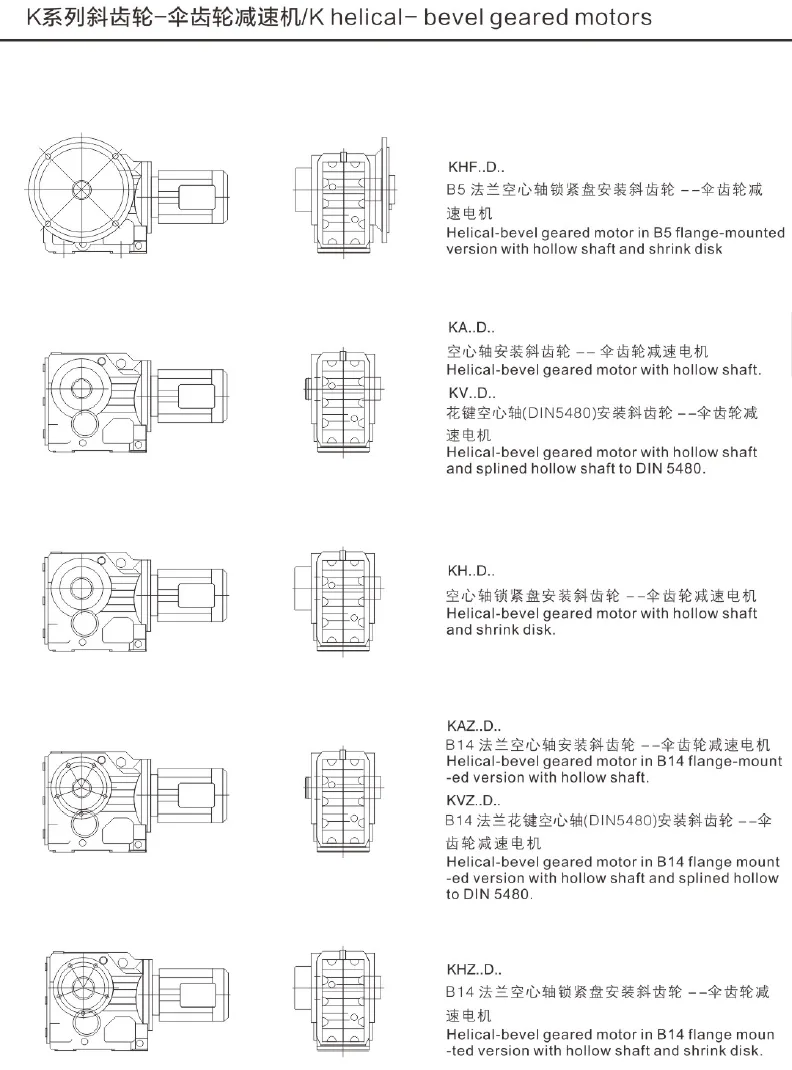

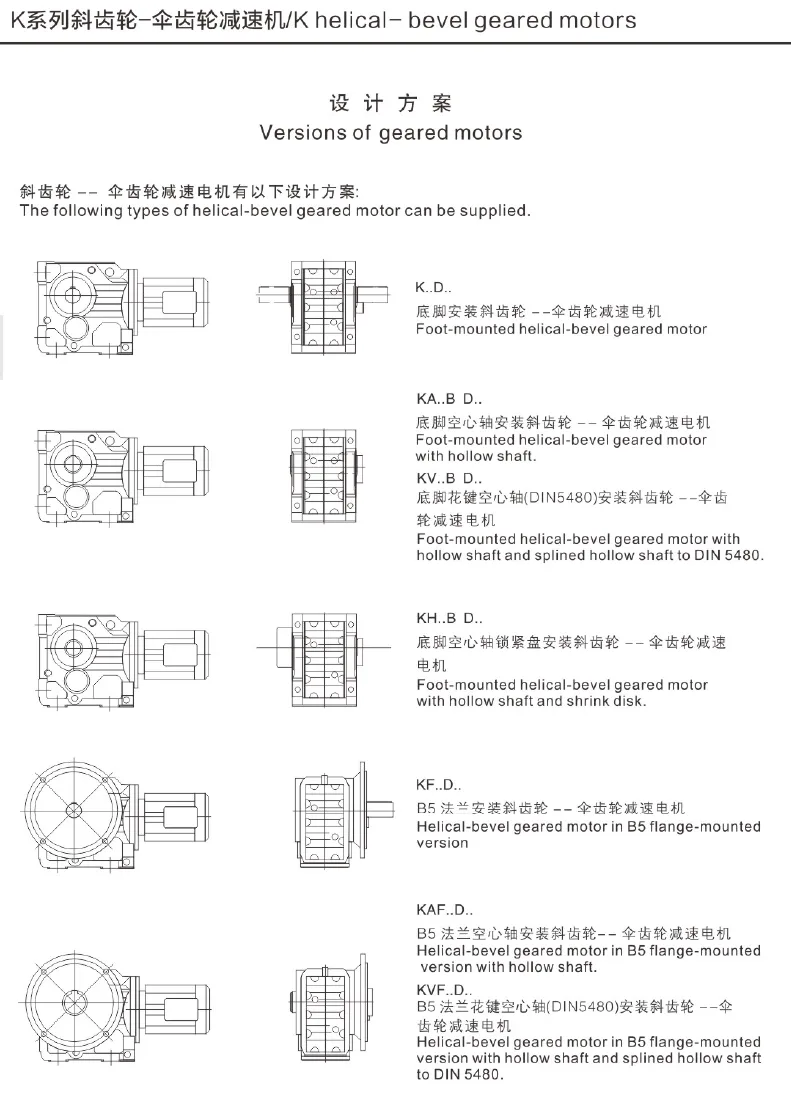

- Installation Form: Foot, Flange, Shaft Mounted
Components:
1. Housing: Cast Iron
2. Gears: Helical-bevel Gears
3. Input Configurations:
- Equipped with Electric Motors
- Solid Shaft Input
- IEC-normalized Motor Flange
Output Configurations:
- Solid Shaft Output
- Hollow Shaft Output
Mounting:
- Foot-mounted
- B5 Flange-mounted
- B14 Flange-mounted
- Shaft-mounted
Click to download: K Series Helical-Bevel Gear Reducer Manual
Contents:
- K Series Helical-Bevel Gear Reducer Parameters
- K Series Helical-Bevel Gear Reducer Installation Dimensions
- K Series Helical-Bevel Gear Reducer Mounting Position
- K Series Helical-Bevel Gear Reducer Motor Terminal Box Position Diagram
- K Series Helical-Bevel Gear Reducer Input Power and Allowable Torque
- K Series Helical-Bevel Gear Reducer Weight Table
- K Series Helical-Bevel Gear Reducer Lubricant Quantity Table
- Single Phase AC Motor, Three Phase AC Motor
- Brake Motors
- Inverter Motors
- Multi-speed Motors
- Explosion-proof Motor
- Roller Motor
