You deserve to trust this high-quality synchronous motor manufacturer.
Permanent magnet variable frequency synchronous motor
The permanent magnet variable frequency synchronous motor uses permanent magnets as the rotor, which can save energy and reduce consumption, and has advantages such as high efficiency and high precision control. It is suitable for digital control machine tools, pharmaceuticals, textiles, and other fields.

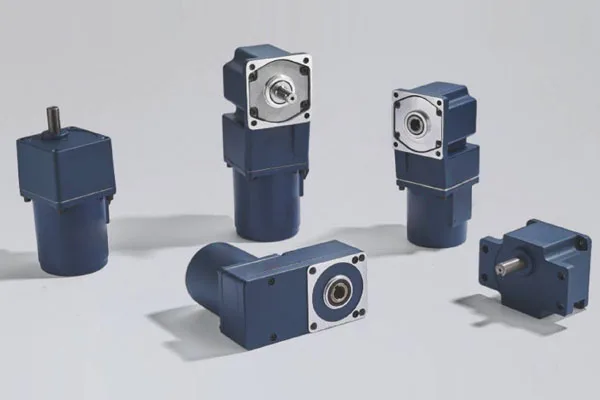

Permanent Magnet Synchronous Motor Communication
Permanent magnet synchronous motors used in communication adopt permanent magnets as rotors, simplifying the complex structure of traditional motors, and possess higher efficiency, power factor, and quality factor, making them suitable for applications such as air conditioners, compressors, and magnetic levitation fans.
400W Permanent Magnet Variable Frequency Synchronous Motor
- Rated Voltage: Three-phase 220V, Three-phase 380V
- Maximum Output Power: 400W
- Frequency Range: 2-75Hz
- Speed Range: 50-2000 r/min
- Rated Current: Three-phase 220V 1.9A, Three-phase 380V 1.1A
- Starting Torque: Three-phase 220V 5.9 N·m, Three-phase 380V 5.9 N·m
- Torque at 50Hz: Three-phase 220V 2.7 N·m, Three-phase 380V 2.7 N·m
- Protection Class: IP44
- Duty Type: S1
- Drive Mode: Variable Frequency Drive
- Energy Efficiency Grade: Level 1
750W Permanent Magnet Variable Frequency Synchronous Motor
- Rated Voltage: Three-phase 220V, Three-phase 380V
- Maximum Output Power: 750W
- Frequency Range: 2-75Hz
- Speed Range: 50-2000 r/min
- Rated Current: Three-phase 220V 3.4A, Three-phase 380V 2.0A
- Starting Torque: Three-phase 220V 11.9 N·m, Three-phase 380V 11.9 N·m
- Torque at 50Hz: Three-phase 220V 5.4 N·m, Three-phase 380V 5.4 N·m
- Protection Class: IP44
- Duty Type: S1
- Drive Mode: Variable Frequency Drive
- Energy Efficiency Grade: Level 1
1500W Permanent Magnet Variable Frequency Synchronous Motor
- Rated Voltage: Three-phase 220V, Three-phase 380V
- Maximum Output Power: 1500W
- Frequency Range: 2-75Hz
- Speed Range: 50-2000 r/min
- Rated Current: Three-phase 220V 6.4A, Three-phase 380V 3.7A
- Starting Torque: Three-phase 220V 23.5 N·m, Three-phase 380V 23.5 N·m
- Torque at 50Hz: Three-phase 220V 10.7 N·m, Three-phase 380V 10.7 N·m
- Protection Class: IP44
- Drive Mode: Variable Frequency Drive
- Energy Efficiency Grade: Level 1
2200W Permanent Magnet Variable Frequency Synchronous Motor
- Rated Voltage: Three-phase 220V, Three-phase 380V
- Maximum Output Power: 2200W
- Frequency Range: 2-75Hz
- Speed Range: 50-2000 r/min
- Rated Current: Three-phase 220V 9.5A, Three-phase 380V 8.7A
- Starting Torque: Three-phase 220V 23.5 N·m, Three-phase 380V 23.5 N·m
- Torque at 50Hz: Three-phase 220V 15.6 N·m, Three-phase 380V 14 N·m
- Protection Class: IP44
- Duty Type: S1
- Drive Mode: Variable Frequency Drive
- Energy Efficiency Grade: Level 1

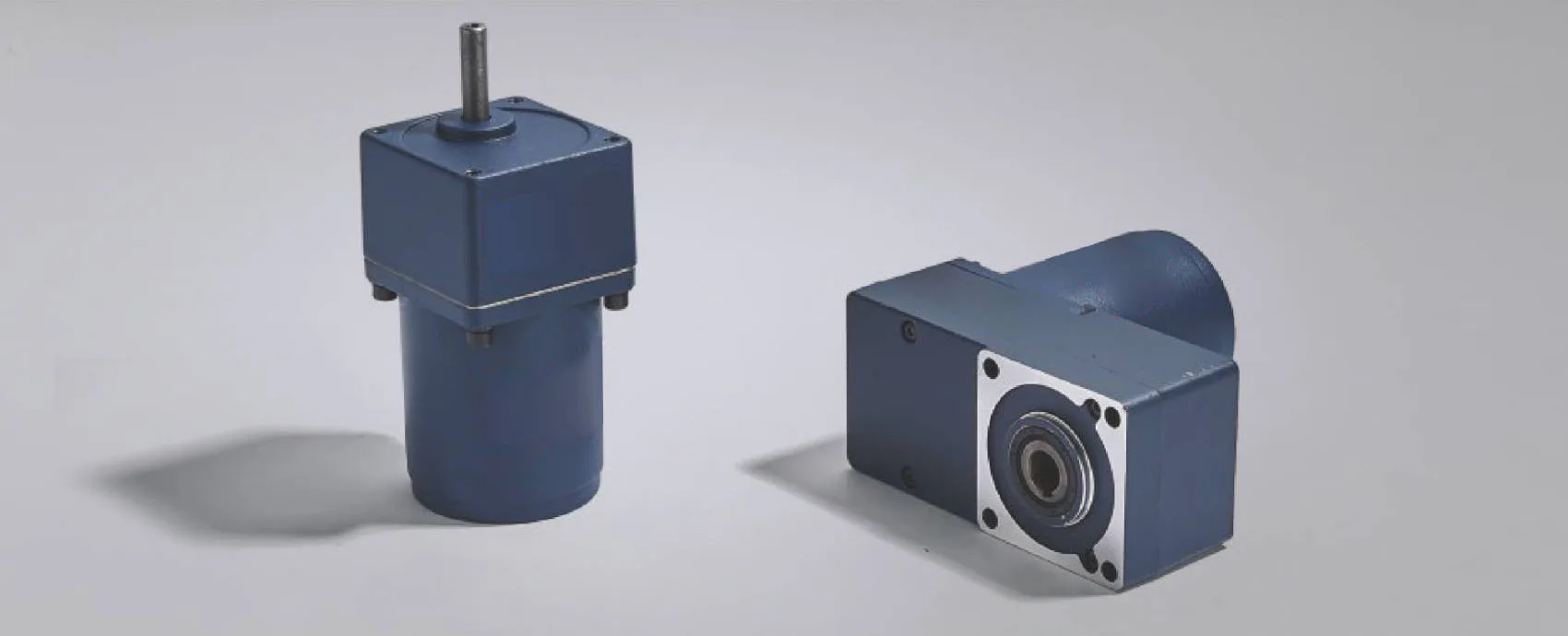

60 Series AC Permanent Magnet Synchronous Motor
- Rated Power: 30W (20-40)
- Rated Speed: 2000 r/min
- Rated Torque: 0.096 N·m
- Instantaneous Maximum Torque: 0.16 N·m
- Rotor Inertia: 0.042

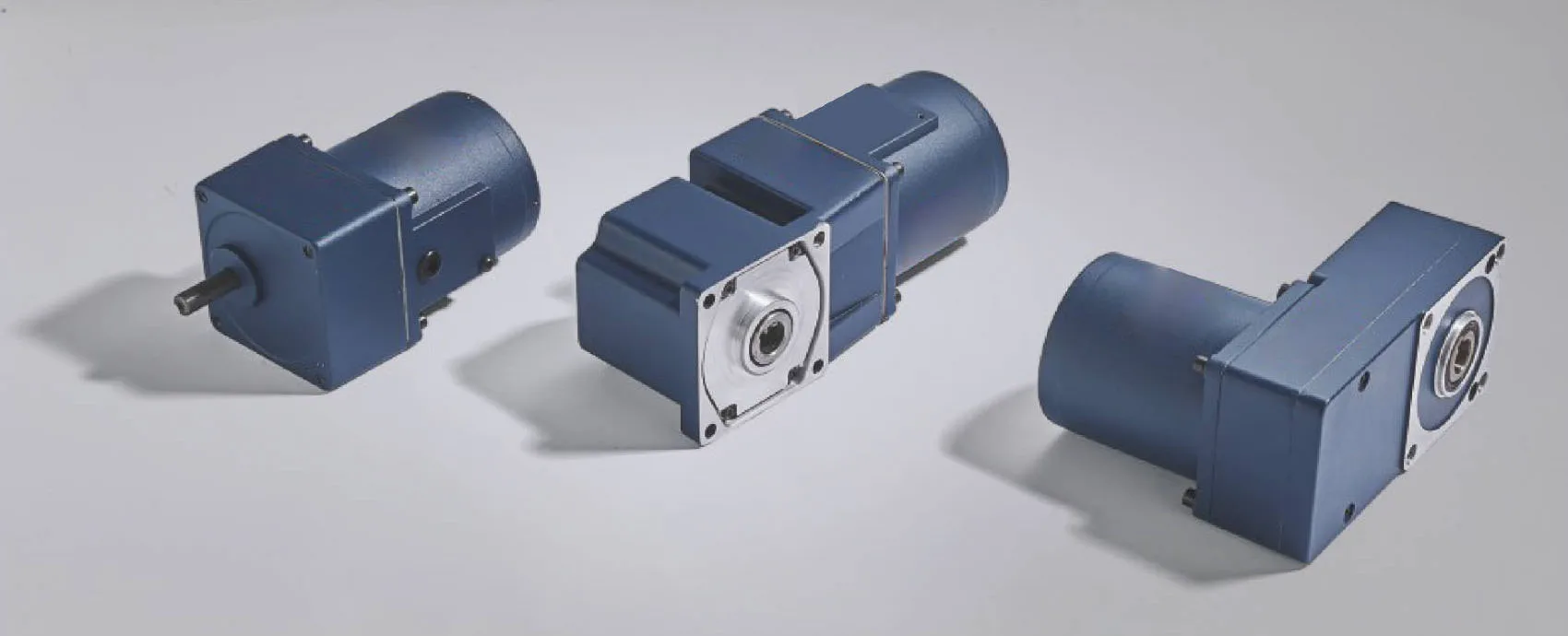

80 Series AC Permanent Magnet Synchronous Motor
- Rated Power: 60W (90W)
- Rated Speed: 2000 r/min
- Rated Torque: 0.230 N·m
- Instantaneous Maximum Torque: 0.345 N·m
- Rotor Inertia: 0.082

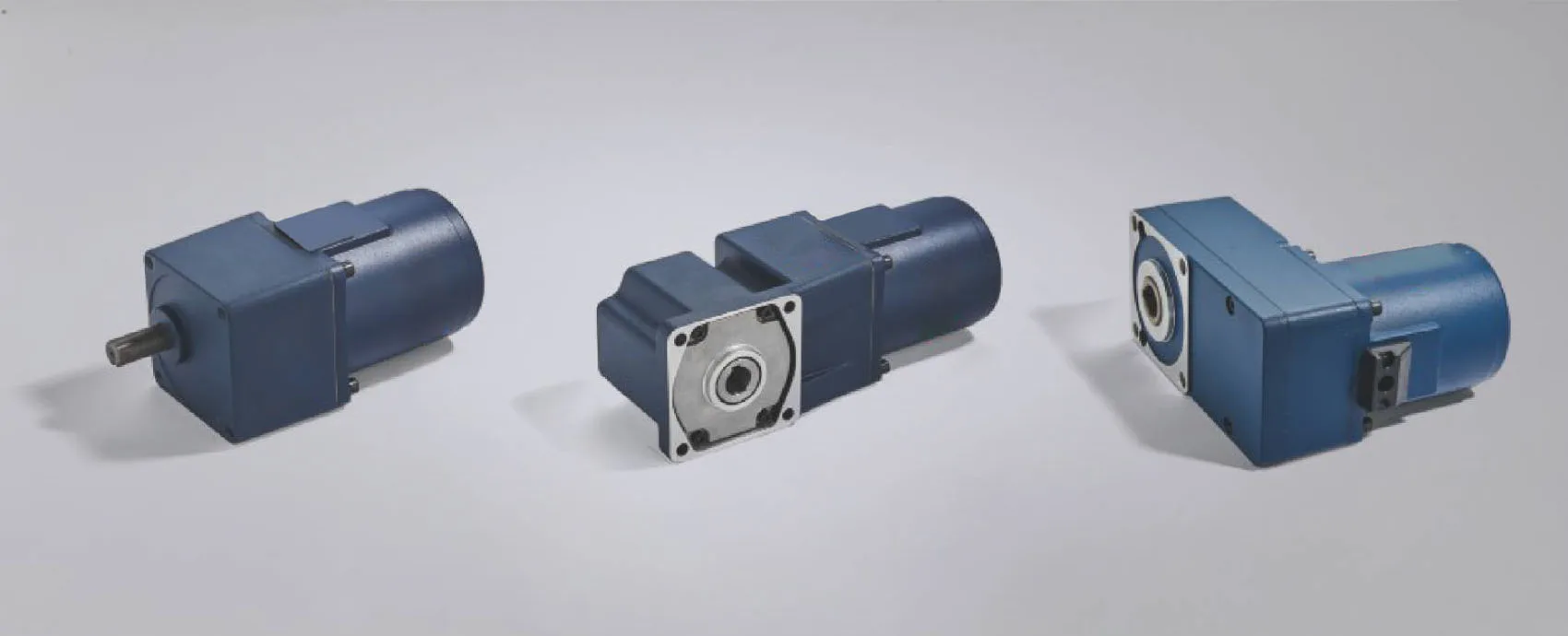

90 Series AC Permanent Magnet Synchronous Motor
- Rated Power: 60W (60W/200W)
- Rated Speed: 2000 r/min
- Rated Torque: 0.230 N·m
- Instantaneous Maximum Torque: 0.345 N·m
- Rotor Inertia: 0.082

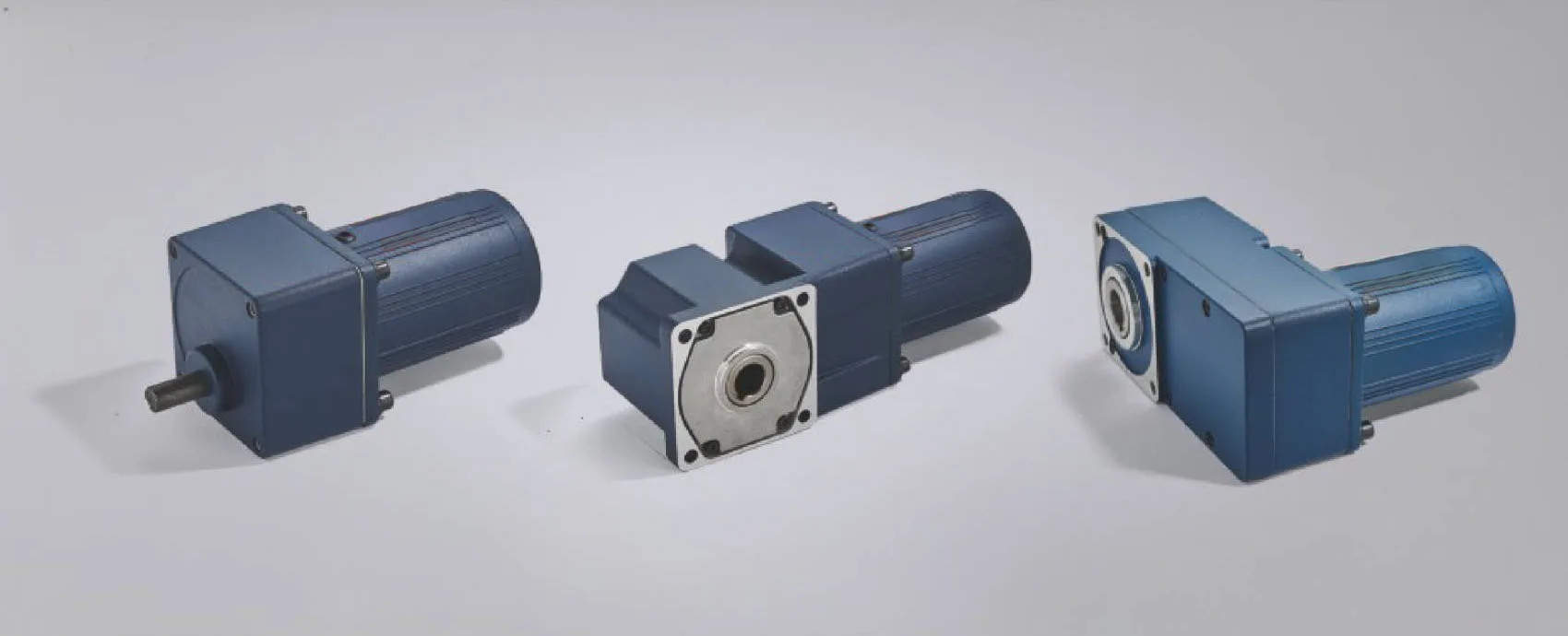

104 Series AC Permanent Magnet Synchronous Motor
- Rated Power: 200W (200W/400W)
- Rated Speed: 1500 r/min
- Rated Torque: 0.764 N·m
- Instantaneous Maximum Torque: 1.146 N·m
- Speed Control Range: 200-3000 RPM
