1500W Permanent Magnet Variable Frequency Synchronous Motor
Parameters of 1500W permanent magnet variable frequency synchronous motor
- Rated Voltage: Three-phase 220V, Three-phase 380V
- Maximum Output Power: 1500W
- Frequency Adjustment Range: 2-75Hz
- Speed Reduction Range: 50-2000 r/min
- Rated Current: Three-phase 220V 6.4A, Three-phase 380V 3.7A
- Starting Torque: Three-phase 220V 23.5 N·m, Three-phase 380V 23.5 N·m
- 50Hz Torque: Three-phase 220V 10.7 N·m, Three-phase 380V 10.7 N·m
- Protection Level: IP44
- Duty Type: S1
- Drive Mode: Variable Frequency Drive
- Energy Efficiency Level: Level 1 Energy Efficiency
Product portfolio
Reduction ratio: 1:3-60
型号：YH□-1500-□-S
Reduction ratio: 1:3-60
型号：YV□-1500-□-S
Reduction ratio: 1:5-36
型号：YRT□-1500-□-S
Reduction ratio: 1:5-36
型号：YRC□-1500-□-S
Model Description
Characteristics of Permanent Magnet Variable Frequency Synchronous Motor
A permanent magnet synchronous motor (PMSM) is a type of motor with a perpetually existing magnetic field. Its rotor is made of permanent magnet materials and rotates synchronously with the rotating magnetic field, eliminating the need for dynamic magnetic field conversion through electromagnetic windings. Compared to traditional induction motors, it offers higher efficiency and a wider operating range, while maintaining a lower power factor during efficient operation, thus achieving energy-saving performance.
In light of the technical characteristics of permanent magnet synchronous motors, the Hengming Intelligent Permanent Magnet Synchronous Motor also boasts the following advantages:
- High Efficiency and Energy Saving: By replacing the magnets of an induction motor with permanent magnet materials, the magnetic field of the PMSM rotor is significantly stronger. This greatly enhances the motor’s efficiency while maintaining a lower power factor under high-efficiency conditions, achieving the goal of energy efficiency and conservation.
- Precise Control: Hengming Intelligent PMSMs can achieve precise control of parameters such as speed and torque through devices like variable frequency drives (VFDs) and encoders, ensuring more stable and reliable output performance.
- Low Regular Noise: Since the magnetic field of the PMSM rotor is constant, the electromagnetic noise of the motor is lower than that of an induction motor, making it suitable for applications requiring reduced noise levels.
- Low Operation and Maintenance Costs: As PMSMs lack electromagnetic windings, the failure rate of the motor is significantly reduced, leading to lower maintenance costs and reduced repair complexity.
Application of Permanent Magnet Variable Frequency Synchronous Motor
The 1500W HM Motor Permanent Magnet Variable Frequency Synchronous Motor can be widely applied in fields such as mechanical equipment, metallurgy, automotive, and medical industries. Specific application scenarios are as follows:
- Mechanical Equipment: HM Motor permanent magnet synchronous motors can be used in machine tools, cranes, presses, injection molding machines, and other mechanical equipment. With advantages such as high efficiency, energy saving, precise control, and low maintenance costs, they enhance production efficiency and reduce energy consumption.
- Metallurgy: In the metallurgy sector, HM Motor permanent magnet synchronous motors can be applied to equipment such as blast furnaces, rolling mills, and transformers. Offering benefits like high efficiency, energy saving, and excellent stability, they improve equipment efficiency and lower operating costs.
- Automotive: In the automotive field, HM Motor permanent magnet synchronous motors can be integrated into motor controllers and primary power systems of electric vehicles. With advantages like high efficiency, energy saving, and precise control, they enhance electric vehicle performance, reduce energy consumption, and align with environmental sustainability principles.
- Medical: In the medical field, HM Motor permanent magnet synchronous motors can be utilized in operating tables, diagnostic equipment, medical polishers, and similar devices. Featuring low regular noise and precise control, they minimize disturbances to patients and improve the operational efficiency of medical equipment.
The HM Motor 1500W Permanent Magnet Variable Frequency Synchronous Motor has a broad range of applications across multiple industries and scenarios. It helps customers reduce energy consumption, increase operational efficiency, and achieve goals related to environmental protection, emission reduction, and sustainable development.

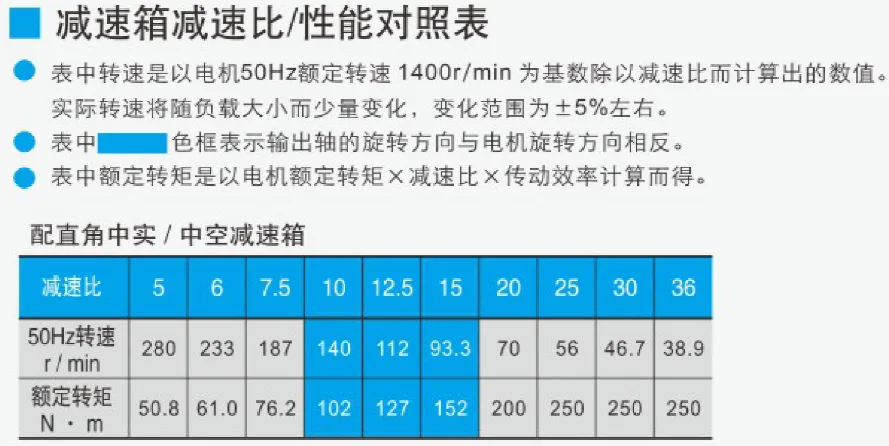

Comparison Table of Reduction Ratio and Performance of 1500W Permanent Magnet Variable Frequency Synchronous Motor Gearbox

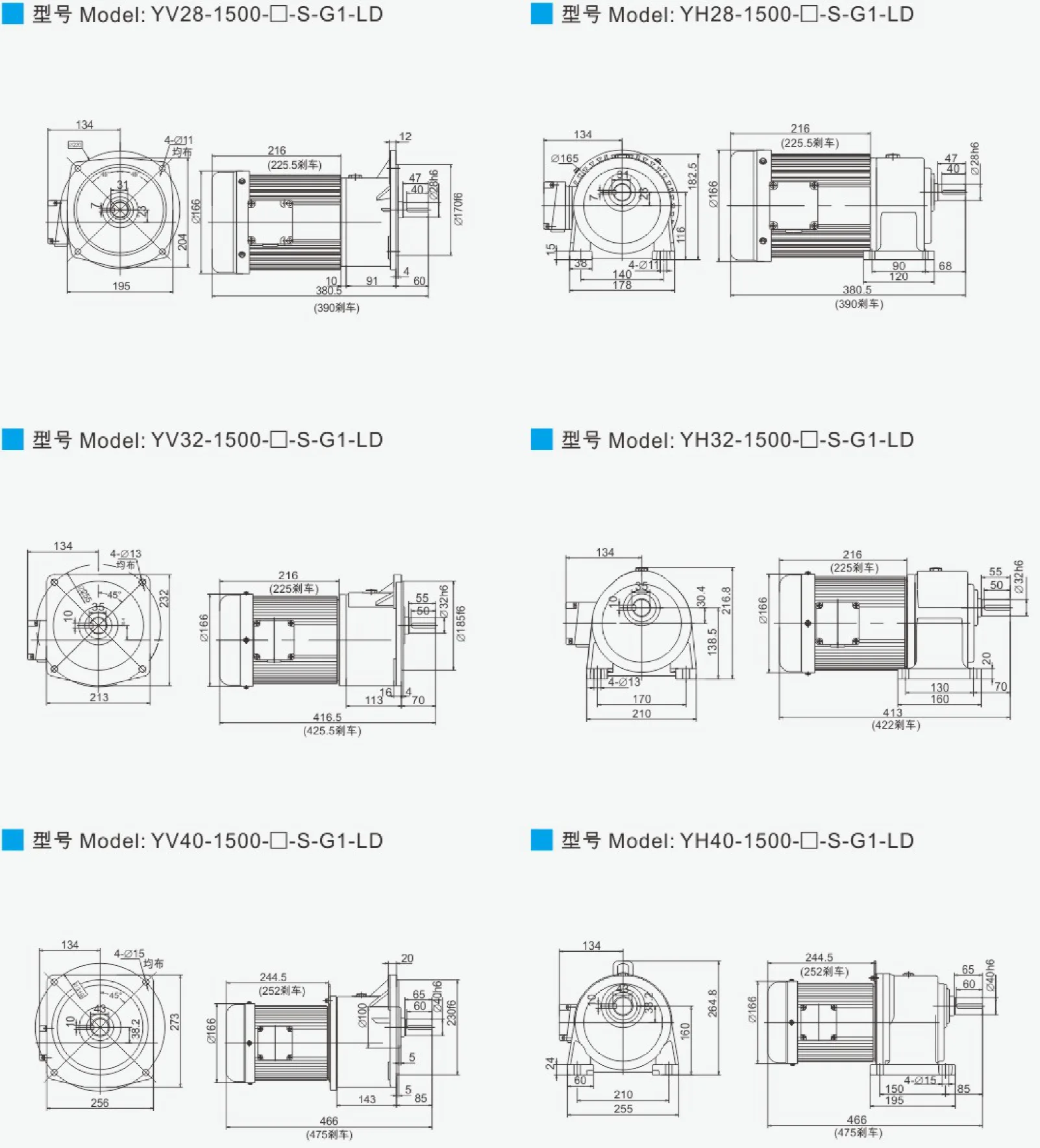

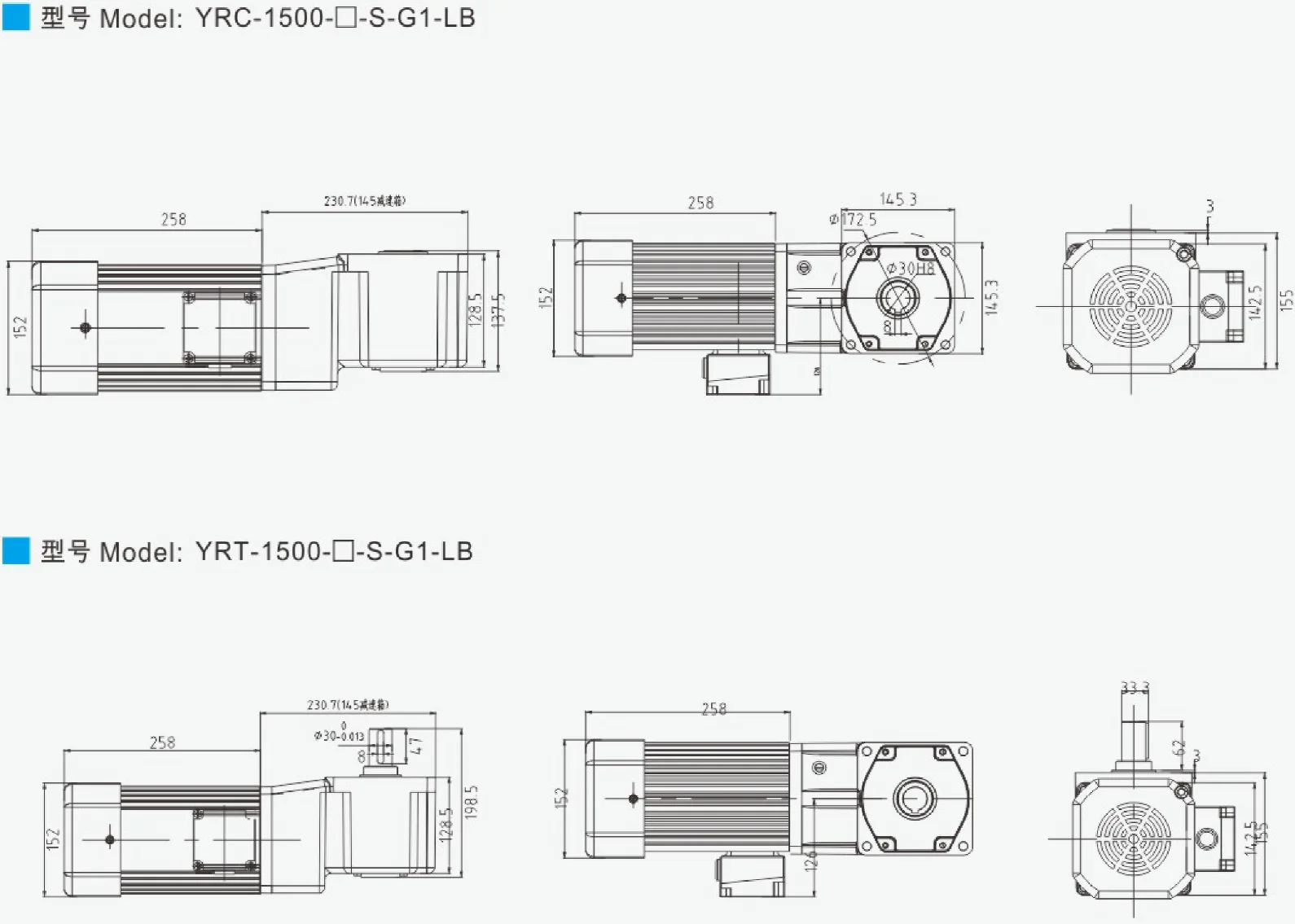

Outline dimension drawing of 1500W permanent magnet variable frequency synchronous motor
