PMSM
60 series AC permanent magnet synchronous motor
HM Motor provides you with the high-performance AC permanent magnet synchronous motor 60 series, which is suitable for industrial equipment, mechanical transmission and other fields. It has a compact structure, high power, high efficiency, long service life, low noise, and fast response. Welcome to inquire about procurement.

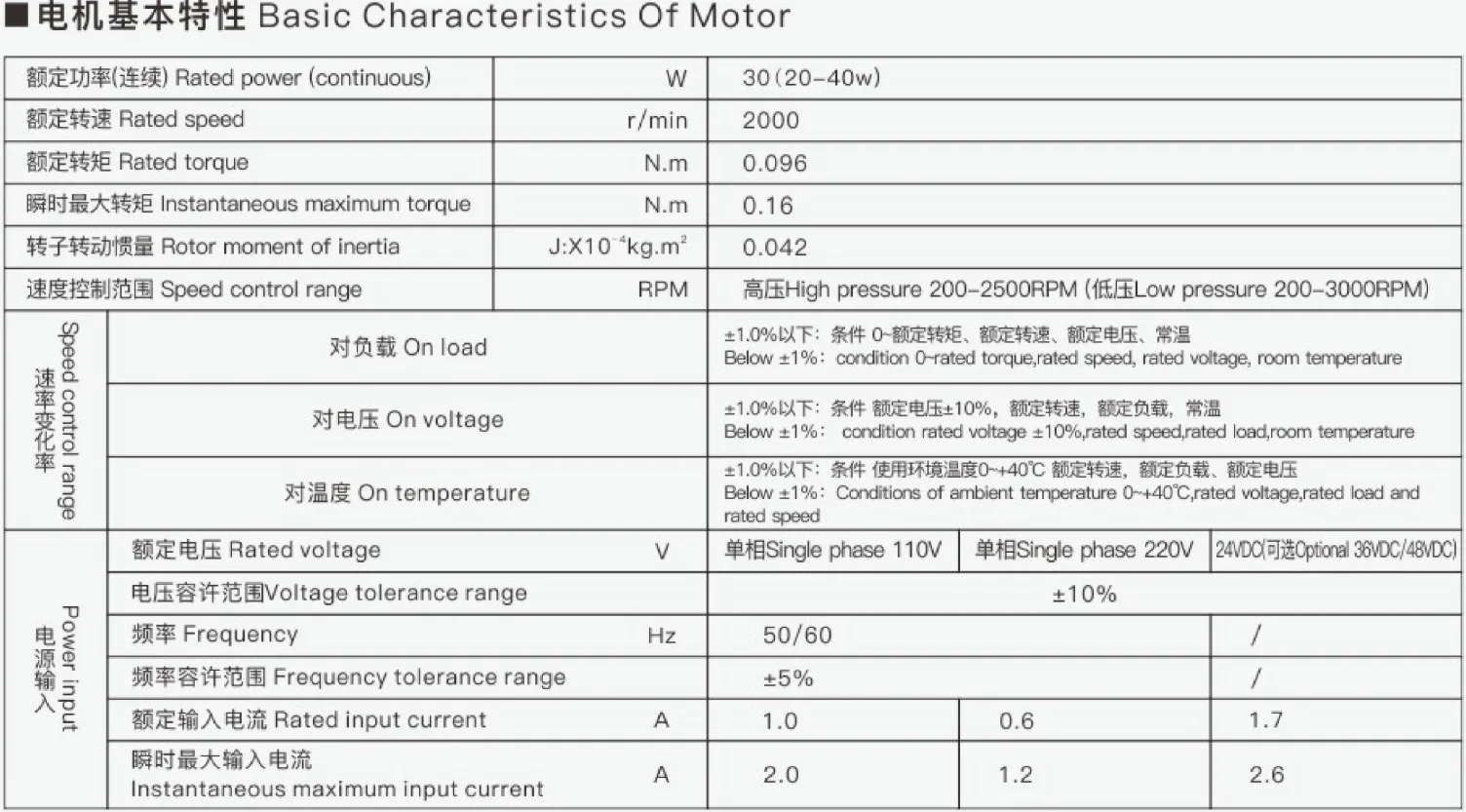

Basic Characteristics of Motor
- Rated Power: 30W (20-40)
- Rated Speed: 2000 r/min
- Rated Torque: 0.096 N·m
- Instantaneous Maximum Torque: 0.16 N·m
- Rotor Moment of Inertia: 0.042
Motor details
Applications of 60 series AC permanent magnet synchronous motor
The 60 Series AC Permanent Magnet Synchronous Motor is a high-performance and highly efficient motor product suitable for a wide range of applications:
- Industrial Equipment: The 60 Series motor is widely used in various industrial equipment, including fans, pumps, compressors, manufacturing machinery, and other mechanical drive systems.
- Transportation: With its high torque, high speed, and high efficiency, the 60 Series motor is the preferred choice for electric vehicles, electric motorcycles, electric vehicle air conditioners, electric seats, and other electric systems.
- Home Appliances: The motor is applied in the home appliance sector, such as in washing machines, air purifiers, vacuum cleaners, and other small appliances.
- Robotics, Medical Equipment, and Other Automation Equipment: The 60 Series motor is also utilized in robotics, medical devices, and various automated systems.
The 60 Series AC Permanent Magnet Synchronous Motor offers a broad range of applications across numerous fields. If you require high-performance and high-efficiency power, the 60 Series motor is your ideal choice.
60 series AC permanent magnet synchronous motor advantages
The 60 Series AC Permanent Magnet Synchronous Motor, a product manufactured by HM Motor, offers the following features:
- High Efficiency: The motor achieves an efficiency of over 95%, significantly surpassing traditional AC asynchronous motors. This results in greater energy savings and reduced energy consumption costs.
- Long Service Life: The 60 Series motor boasts a long lifespan, capable of lasting for decades, thanks to its use of advanced materials and manufacturing processes.
- Low Noise: Operating at a noise level below 50 decibels, the motor produces significantly less noise than traditional motors, improving the quality of the working environment for production equipment.
- Fast Response: The 60 Series motor features rapid response times, enabling instantaneous starting and braking, which greatly enhances operational efficiency.
- Compact Design: With a compact and lightweight structure, the motor is easy to install and saves space, making it highly practical for various applications.
