S Series Helical-Worm Gear Reducers Summary
- Input Power: 0.12~22 kW
- Max. Torque: Up to 4610 N.m
- Input Speed: 3000, 1500, 1000, 750 r/min
- Ratio: 4.4~795.12 (i)
- Gearsets: Hardened helical gears
- Output Design: Right angle
- Mounting Methods: Foot, flange or shaft mounted
- Available Models: S, SA, SF, SAF
- Housing Material: High strength cast iron
- Brand Bearing: C&U, NSK, SKF, FAG
- Cooling Methods: Natural cooling
S Series Helical-Worm Gear Reducers Models
S Series Helical-Worm Gear Reducers Details
Features
Model Notes
Type of Geared Motors
Type of combination
Parameters
Components
Applications
Features
- Compact structure, modular design
- High transmission efficiency up to 96%
- Variable reduction ratio allowed
- Variable driving power allowed
- High performance, high safety factor, energy-saving, small vibration, low noise, high precision, big torque and long working life
- Can be combined with other types of gear motors, such as R Series, PX Series, G Series, MB Series, UDL Series, etc.
Service Conditions
- Ambient Temperature: -40~50°C
- Altitude: 1000 m.a.s.l
- Working Duty: S1(Continuous)
- Humidity: ≦90%
- Cooling Method: Natural Cooling
- Lubrication: Oil-bath and Splash Lubrication (The lubrication should be heated above 0°C, if the temperature of machine is below 0°C when it starts working)
- Suitable for normal-reverse rotation
Available Drive Motors
- General Motors of 1 Phase or 3 Phase AC
- Brake Motors
- Variable Frequency Variable Speed Motors
- Variable-pole Multi-speed Motors
- Explosion-proof Motors
- Permanent Magnet Motors
- DC Motors
- Servo Motors
- Brushless Motors
- Other Motors
Available Mounting Methods
- Foot Mounted
- Flange Mounted
- Shaft mounted
Model Notes

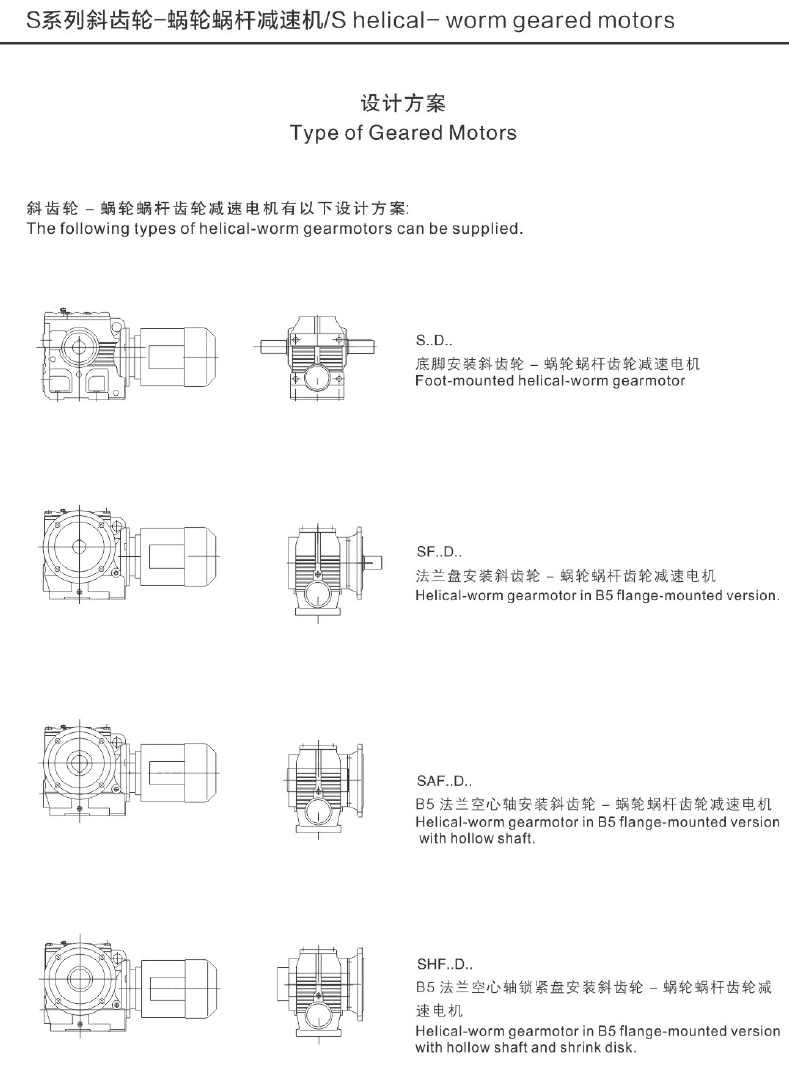

Type of Geared Motors
The following types of helical worm gear motors can be supplied.
- S..D..:Foot mounted helical worm gear motor
- SF..D: Helical worm gear motor in B5 flange mounted version
- SAF..D..: Helical worm gear motor in B5 flange mounted version with hollow shaft
- SHF..D..: Helical worm gear motor in B5 flange mounted version with hollow shaft and shrink disk
- SA..D..: Helical worm gear motor with hollow shaft
- SH..D..: Helical worm gear motor with hollow shaft and shrink disk
- SAZ..D..: Helical worm gear motor in B14 flange mounted version with hollow shaft
- SHZ..D..: Helical worm gear motor in B14 flange mounted version with hollow shaft and shrink disk
Type of combination
The following is a combination table between the gearbox and electromotor in each list of the ratio range.
Parameters
PDF Download: S Series Helical-Worm Gear Reducer Manual
Contents:
- S Series Helical-Worm Gear Reducer Parameters
- S Series Helical-Worm Gear Reducer mounting Dimensions
- S Series Helical-Worm Gear Reducer Mounting Position Example
- S Series Helical-Worm Gear Reducer Motor Terminal Box Positions
- S Series Helical-Worm Gear Reducer Input Power Rating and Permissible Torque
- S Series Helical-Worm Gear Reducer Lubricant Quantity Table
Components
1. Housing: Cast Iron
2. Gears: Helical-worm Gears
3. Input Configurations:
- Equipped with Electric Motors
- Solid Shaft Input
- IEC-normalized Motor Flange
Applications
- Waste water treatment
- Dredgers
- Metal working mills
- Conveyors
- Cranes
- Mixer
- Crusher
- Cooling towers
- Paper machine
- Cableways
- Cement industry
- Petroleum industry
- Textile machinery
- Food machine
- Power machine
- Construction machine
- Metallurgy machine
- Cement machine
- Water conservancy machine
- Chemical machine
- Mining machine
- Transportation machine
- Rubber machine
- Petroleum machine
- Other machines and industries
